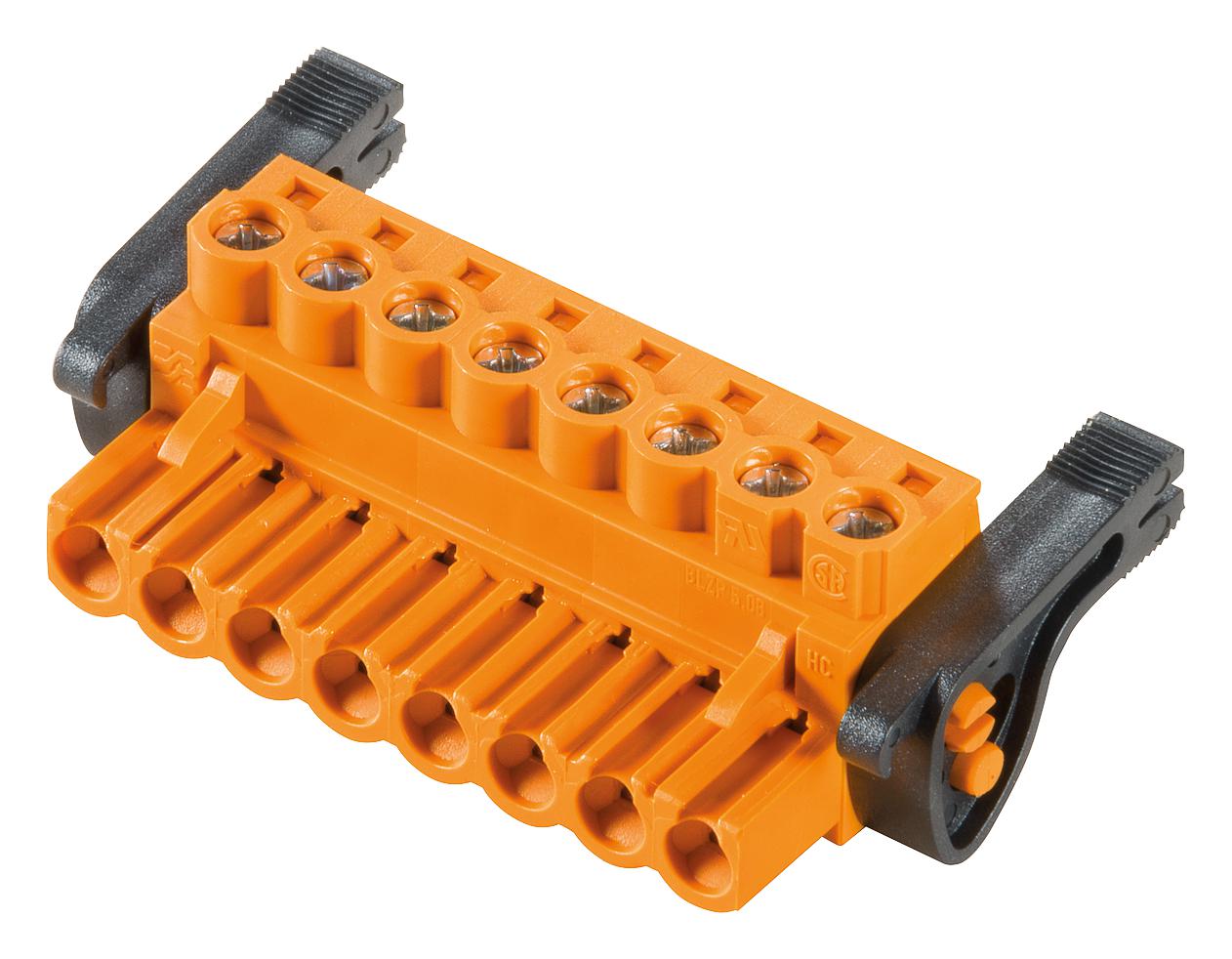

WEIDMULLER 1944850000 PCB Female Connector
The Weidmiiller Series BL/SL 5.08 female connector is designed for reliable wire connections in industrial environments. It features a clamping yoke screw system for secure terminal connections, with a straight (180°) outlet orientation. The connector supports current ratings up to 20A and a voltage of 400V according to IEC standards, with compatibility for AWG 26 to AWG 12 conductors. Constructed with high-quality PBT insulation and tinned copper contacts, it provides safe, finger-proof protection, is easily labeled, and is suitable for PCB and panel mounting in automation and control applications.
WEIDMULLER 1944850000 PCB Female Connector Specifications:
- No. of poles: 4
- Connection type: Clamping yoke connection
- Pitch: 5.08 mm (0.2 inch)
- Rated voltage: 400 V (IEC), 300 V (UL)
- Rated current: 20A (IEC), 20A (UL)
- Clamping range: 0.2 mm to 4 mm
- Contact material: Copper alloy, tinned
- Insulating material: PBT, orange color (RAL 2000), V-0 flammability rating
- Temperature range: -60°C to +100°C
- Max. wire cross-section: AWG 12
- Minimum wire cross-section: AWG 30
- Contact surface: Tin-plated, 4-8 µm
- Touch-safe protection: Yes
- Stripping length: 7 mm
- Tightening torque: 0.4–0.5 Nm
- Screwdriver: 0.6 x 3.5 mm, PH 1
- Standards: IEC 60664-1, IEC 61984, UL 1059, CSA
- Dimensions: Length approximately 14.9 mm, width compatible with PCB and panel mount
- Weight: 8.349 grams
- Certifications: UL, CSA, RoHS compliant
Buy the Weidmiiller 1944850000 – Reliable PCB Connector for Industrial Applications
Purchase the Weidmiiller Series 1944850000 female connector online today and experience dependable, high-quality wiring solutions for automation, control panels, and industrial equipment. With a secure clamping yoke system, rated for 20A and 400V, it guarantees optimal safety and reliability. Its durable PBT insulation and tinned copper contacts ensure long-lasting performance in demanding environments. Easy to label and install, this connector is perfect for PCB applications and panel mounting, helping you streamline your assembly process while maintaining high safety standards in your electrical systems.
Order your Weidmiiller Series 1944850000 female connector today and ensure secure, high-current connections in your automation projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 1944850000?
You can click on the BUY or RFQ button to purchase 1944850000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1944850000?
You can download the 1944850000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1944850000?
WEIDMULLER
