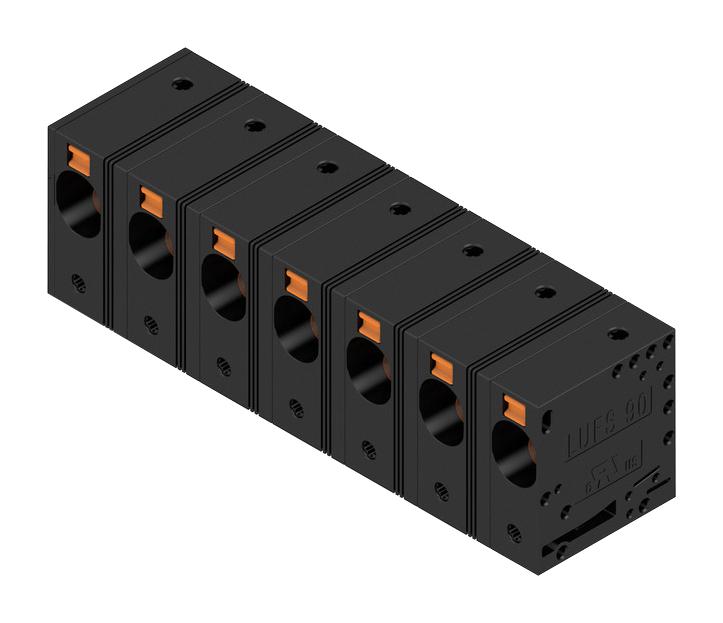

WEIDMULLER 2500600000 High-current Power Terminal
The LUFS 15.00/07/90V 5.0SN BK BX is a robust, high-current power connection terminal designed for demanding power electronics applications. Suitable for solar inverters, frequency converters, servo controllers, and power supplies, it features a 15 mm pitch with 7 poles, solder pins protruding 5 mm, and a black PUSH IN structure without actuator. Its construction ensures reliable, secure connections with a clamping range up to 16 mm. The terminal is rated for up to 1000 V and 101 A, complying with international standards for safety and performance, ideal for automotive, industrial, and renewable energy markets.
WEIDMULLER 2500600000 High-current Power Terminal Specifications:
- Dimensions: Width 101.8 mm, Height 35 mm, Depth 28.55 mm
- Weight: 82.199 g
- Number of poles: 7, Solder pin length: 5 mm
- Pitch: 15 mm
- Solder eyelet hole diameter: 17 mm
- Material: Insulating Wemid (PA), Contact: Copper
- Insulation material group: I, CTI >600
- Operating temperature: -40°C to 120°C
- Rated voltage: 1000 V (IEC), 600 V (UL, CSA)
- Rated current: 6A (IEC, at 20°C), 86A (IEC, at 40°C), 53 A (UL, CSA)
- Clamping range: 0.5 mm to 16 mm
- Wire cross-section: AWG 18 to AWG 4
- UL Flammability: V0, Certification: RoHS compliant
- Mounting: THT solder connection, conductor outlet direction: 90°
Buy the Weidmueller Series LU Power Terminal: 2500600000
Secure your electrical connections with the high-current power terminal from Weidmueller's LU series. Featuring 7 poles and a 15 mm pitch, this terminal supports up to 1000 V and 101 A for demanding power electronics applications. Designed for PCB mounting with THT soldering, it offers reliable contact, insulation, and easy assembly. Its wide clamping range from 0.5 mm to 16 mm ensures versatility for various wire sizes, making it ideal for solar inverters, servo controllers, and industrial power supplies. Perfect for professionals seeking durable, safe, and efficient power distribution components.
Order your Weidmueller Series LU power terminal 2500600000 today and give your projects the dependable, high-current connection they require.
