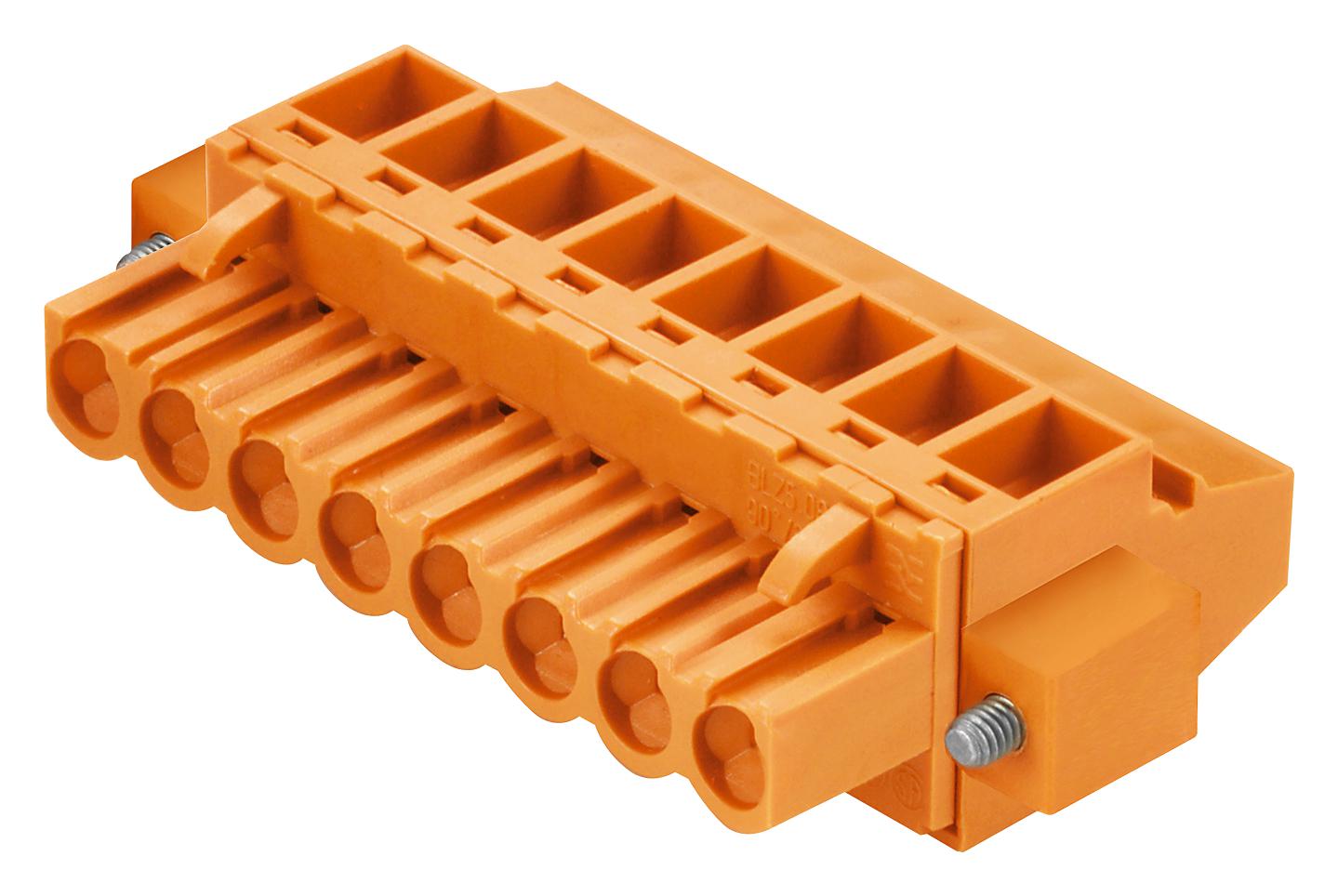

WEIDMULLER 1949880000 Signal Connector
The female plug connector features a clamping-yoke connection and right-angle outlet options for secure wire connections in industrial and automation applications. Designed with high-current capability, the connector supports a maximum clamping range of 4 mm and offers space for labeling, coding, and integrated plus/minus screw protection against faulty insertion. Suitable for PCB mounting, it features a durable plastic insulator, tinned copper contacts, and is rated for 400 V/23 A according to IEC standards. Its robust design ensures reliable performance in electrical control systems and wiring projects requiring high current and secure connections.
WEIDMULLER 1949880000 Signal Connector Specifications:
- Number of Poles: 10
- Pitch: 5.08 mm (0.2 inch)
- Outlet direction: 90°
- Clamping range: Max. 4 mm
- Rated voltage IEC: 400 V
- Rated current IEC: 23 A
- Rated voltage UL: 300 V
- Rated current UL: 20 A
- Wire cross-section: AWG 26 - AWG 12
- Contact material: Copper alloy, tinned
- Contact surface: Sn hot-dip, 4-8 μm
- Insulating material: PBT, orange (RAL 2000)
- Flammability: UL 94 V0
- Operating temperature: -25°C to 55°C (storage), -60°C to 100°C (operation)
- Protection class: Safe from finger touch
- Tightening torque: 0.4–0.5 Nm
- Stripping length: 7 mm
- Number of insertion cycles: 25
Buy the Buy Weidmüller Signal Series BL/SL Part Number 1949880000 Online
Secure your electrical wiring projects efficiently by purchasing the Weidmüller Signal connector online. Designed with high-current capability, a robust plastic insulator, and easy mounting, it offers reliable performance for industrial automation and control systems. The connector supports a maximum of 4 mm clamping range, rated at 400 V and 23 A, suitable for various wire sizes from AWG 26 to AWG 12. Its compact right-angle design, corrosion-resistant contacts, and labeling space make it the ideal choice for professionals seeking durable, high-quality female connectors. Buy now for swift delivery and professional-grade performance.
Order your Weidmüller Series BLZP 5.08HC/10/90F SN OR BX connector today and ensure secure, high-current connections with reliable PCB female plugs.
