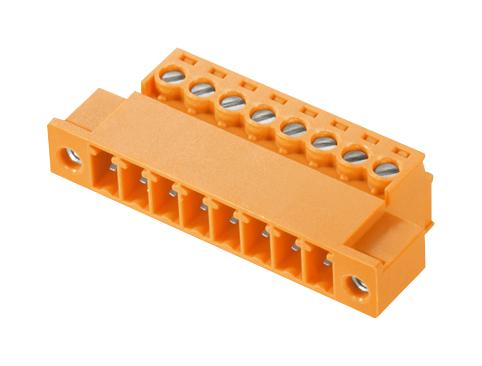

WEIDMULLER 1970930000 Signal Connector
The SCZ 3.81 series is an inverted pin plug with clamping-yoke screw connection, designed for straight wire connections at a 3.81 mm pitch. Suitable for wire-to-wire links with BCZ or as a mating plug for PCB touch-safe BCL sockets, it features various versions including flange types with or without release latch for tool-free disconnection. It offers space for labelling, code customization, and robust electrical ratings, making it ideal for compact PCB and wiring applications in industrial and automation environments.
WEIDMULLER 1970930000 Signal Connector Specifications:
- Pitch: 3.81 mm (0.15 inch)
- Number of Poles: 4
- Rated Voltage: IEC 320 V, UL 300 V, UL 10 A
- Rated Current: 17.5 A (IEC), 10 A (UL)
- Clamping Range: 0.2 - 1.5 mm² AWG 28 - 16
- Material: PA GF (orange, RAL 2000)
- Flammability Rating: UL 94 V-0
- Insulation Resistance: > 550 MΩ
- Temperature Range: -60°C to 120°C
- Screw Size: M2, tightening torque 0.2 - 0.3 Nm
- Protection Class: IP20
- Plug Type: PCB plugin, male, 180°, 4 poles
- Number of Rows: 1
- Conductor Types: Solid, flexible, wire end ferrule with plastic collar
- Approval: IEC, UL, CSA
Buy the Weidmüller Series BC/SC SCZ 3.81: 1970930000
Discover the high-quality Weidmüller Signal Connector, designed for precise PCB and wire connections at 3.81 mm pitch. This robust, easy-to-install connector features a clamping-yoke screw mechanism, various flange options including tool-free release latch, and is rated for up to 17.5A and 320V. Suitable for industrial automation, control panels, and wiring harnesses, it offers excellent insulation resistance and flame-retardant properties, ensuring safety, durability, and flexibility in demanding environments. Buy online today for secure, efficient wiring solutions.
Order your Weidmüller Series BC/SC SCZ 3.81 today and secure reliable, space-saving wire connections for industrial automation and PCB applications.
