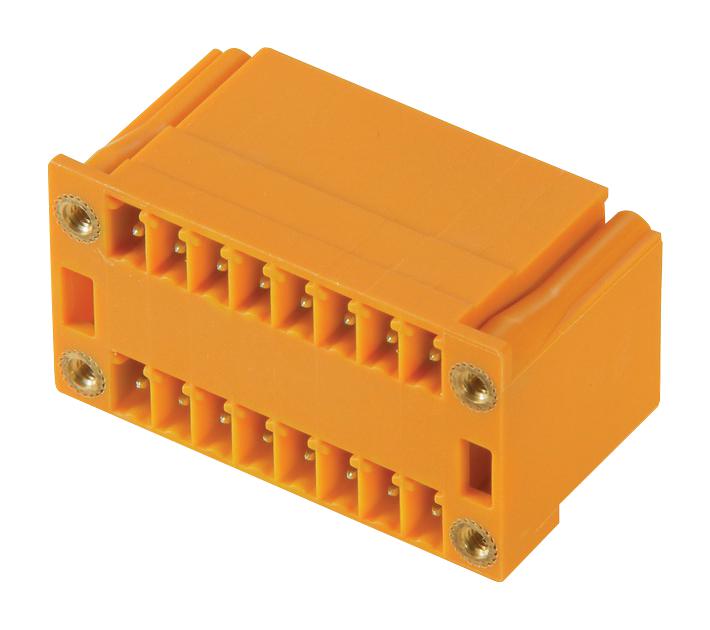

WEIDMULLER 1973320000 PCB Pin Header
The Weidmüller OMNIMATE Signal series BC/SC 3.81 is a two-tier SCD pin header designed for wave soldering, enabling the use of two interfaces on a single surface with streamlined workflow. Featuring a 3.81 mm pitch, 16 poles, and a 90° outlet, this PCB mount connector offers easy access and space for labelling. Made with tinned copper alloy and housed in orange PA GF, it supports high current ratings for industrial applications. Suitable for PCB assembly, it ensures reliable contact and safety with IEC, UL, CSA certifications, and touch-safe protection. Its compact, robust design makes it ideal for manufacturing and automation systems.
WEIDMULLER 1973320000 PCB Pin Header Specifications:
- Pitch: 3.81 mm (0.15 inch)
- Number of poles: 16
- Solder pin length: 3.2 mm ±0.02 mm
- Solder eyelet hole diameter: 1.2 mm ±0.1 mm
- Material: PA GF, orange, contact material: copper alloy, tinned
- Rated voltage: 320V (IEC), 300V (UL/CSA)
- Rated current: 17.5A (IEC), 11A (CSA/UL)
- Temperature Range: -50°C to +120°C
- Touch-safe protection: yes, per DIN VDE
- Soldering: THT, no. of solder pins per pole: 1
- Flux: suitable for wave soldering
- Flammability rating: UL V-0
Buy the Buy Weidmueller OMNIMATE Signal Series BC/SC 3.81 Part Number 1973320000 Online
Enhance your electronic assembly with the Weidmueller PCB Pin Header from the OMNIMATE Signal series. Featuring a 3.81 mm pitch, 16 poles, and a 90° outlet, it is designed for wave soldering, ensuring secure and reliable connections. Made from high-quality copper alloy with a durable tinned surface, it supports high current ratings up to 17.5A. Its compact design includes space for labelling and coding, ideal for industrial, automation, and manufacturing applications. Buy online today to upgrade your PCB projects with dependable and robust connectors.
Order your Weidmueller Series BC/SC 3.81 16-pole PCB connector today and ensure reliable, efficient PCB assembly for industrial automation projects.
