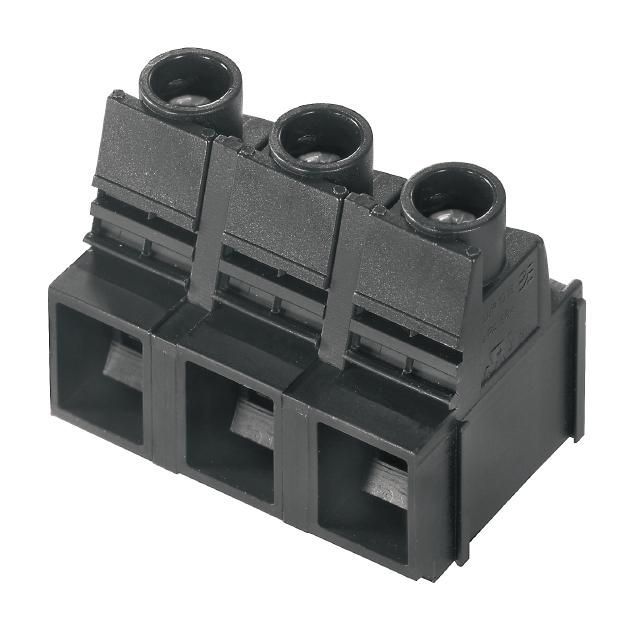

WEIDMULLER 2014900000 PCB Terminal Block
This PCB terminal provides reliable connections for up to 1000 V and 76 A, suitable for conductor cross-sections up to 16 mm?. It features proven clamping yoke technology at a 12.7 mm pitch, with a conductor outlet in a 90° orientation. Designed for robust electrical performance, it is ideal for industrial automation and control applications, ensuring secure and maintenance-friendly wiring. Crafted with tinned copper contact surfaces, it adheres to strict safety standards and accommodates various wire types, making it a versatile solution for PCB connections.
WEIDMULLER 2014900000 PCB Terminal Block Specifications:
- Number of poles: 9
- Pitch: 12.7 mm (0.5 inch)
- Solder pin length: 5 mm
- Conductor cross-section: 0.5-16 mm?
- Rated Voltage: 1000 V (IEC), 600 V (UL)
- Rated Current: 76 A (IEC), 65 A (UL)
- Solder eyelet hole diameter: 1.6 mm ± 0.1 mm
- Material: Wemid (PA), black, UL 94 V0 flammability
- Contact Material: Tinned Copper (Cu)
- Dimensions: Width 112.56 mm, Height 36.5 mm, Depth 25.1 mm
- Net weight: 91.9 g
- Solder pin dimensions: 12 x 1.2 mm
- Clamping range: 0.5 to 16 mm?
- Clamping screw: M4, tightening torque 1.2–1.5 Nm
- Operating Temperature: -50°C to 120°C
- Certifications: UL, CSA, RoHS
Buy the Buy Weidmueller LUP 12.70/09/90 5.0SN BK BX Online
Purchase the Weidmueller LUP 12.70/09/90 PCB terminal block online now to ensure secure, efficient, and maintenance-friendly electrical connections for industrial and control systems. Equipped with proven clamping yoke technology, it supports conductor cross-sections up to 16 mm?, rated for 1000 V and 76 A, conforming to IEC and UL standards. Its 12.7 mm pitch and 9 poles make it an ideal choice for diverse applications, offering durability, safety, and versatile installation options. Order now and enhance your manufacturing or automation setup with trusted quality.
Order your Weidmueller Series LUP 12.70/09/90 terminal block today and secure reliable PCB connections for your industrial projects.
