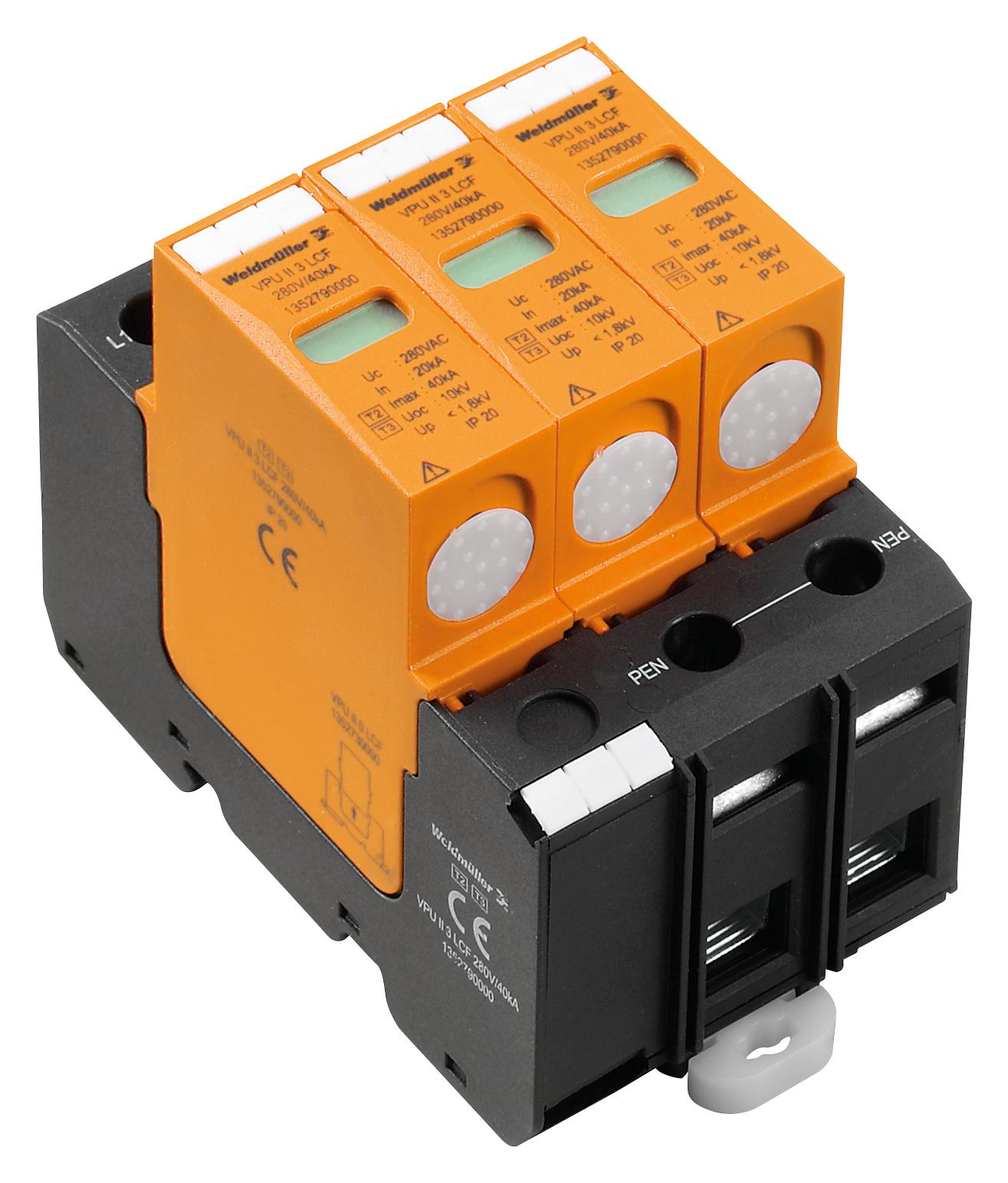

WEIDMULLER 2025520000 VPU II Surge Protection Device
The Weidmuller VPU II surge protection device effectively minimizes interference coupling caused by transient surge voltages, even significantly below the limits prescribed by insulation coordination. This reduces malfunctions in the installation. The arrestors are technically coordinated, eliminating the need for decoupling between different types. Tested according to IEC 61643-11 and suitable for systems according to IEC 61643-12 and IEC 62305-4, this device is compliant with UL 1449 Ed.4 for US power supply systems. Weidmuller offers various models tailored to specific mains network types and voltage levels.
WEIDMULLER 2025520000 VPU II Surge Protection Device Specifications:
- Delivery Status: This article will no longer be available in the future
- Available Until: 2020-05-01
- Type: VPU II 3W WYE 120V
- Order No.: 2025520000
- Version: without telecomm. contact
- GTIN(EAN): 4050118405408
- Quantity: 1pc(s)
- Alternative Product: 2591690000
- Width: 54 mm
- Height: 94 mm
- Depth: 69 mm
- Mounting Dimension - Height: 75 mm
- Width (inches): 2.126 inch
- Height (inches): 3.701 inch
- Depth (inches): 2.717 inch
- Net Weight: 539 g
- Humidity: 5 - 95% rel. humidity
- Operating Temperature, Min: -40 °C
- Storage Temperature, Min: -40 °C
- Storage Temperature: -40 °C...85 °C
- Operating Temperature, Max: 70 °C
- Storage Temperature, Max: 85 °C
- Operating Temperature: -40 °C...70 °C
- Rated Voltage UN: 120 V
- VPR(L/N-PE): 800 V
- SCCR: 200 kA
- Category: SPD TYPE 1CA/2CA
- Continuous Voltage UC, Max: 180 V
- Test Voltage (UL 1449): 208 V
- MCOV(L/N-PE): 180 Vac
- In: 20 kA
- Colour: black,orange
- Optical Function Display: green = OK; red = arrester is defective - replace
- Rail: TS 35
- UL 94 Flammability Rating: V-0
- Design: Installation housing; 3TE, Insta IP 20
- Protection Degree: IP20
- Segment: Power distribution
- Pollution Severity: 2
- Surge Voltage Category: III
- Discharge Current Imax(8/20µs) wire-PE: 40 kA
- Follow-on Current Extinguishing Capability Ifi: Not available for technical reasons
- Low Voltage Network: TN-C(U0≤120/208 V)
- Protection Level Upat IN(L/N-PE): ≤ 0.9 kV
- Requirements Class, acc. to EN 61643-11: T2
- Short-circuit Current Rating ISCCR: 25 kA
- Voltage Type: AC
- Discharge Current In(8/20µs) wire-PE: 20 kA
- Fuse: 125 A gL > (if back up fuse > 125 A)
- Max. Continuous Voltage, Uc (AC): 180 V
- Requirements Category acc. to IEC 61643-11: Type II
- Response Time: ≤ 25 ns
- Signalling Contact: No
- Tightening Torque, Min: 2 Nm
- Wire Connection Cross Section AWG, Min: AWG 14
- Wire Cross-section, Solid, Min: 4 mm²
- Wire Connection Cross-section, Finely Stranded, Min: 2.5 mm²
- Conductor Cross-section, Flexible, AEH (DIN 46228-1), Min: 2.5 mm²
- Connection Cross-section, Stranded, Min: 4 mm²
- Stripping Length, Rated Connection: 15 mm
- Tightening Torque, Max: 3 Nm
- Wire Connection Cross Section AWG, Max: AWG 0
- Wire Cross-section, Solid, Max: 16 mm²
- Wire Connection Cross Section, Finely Stranded, Max: 25 mm²
- Conductor Cross-section, Flexible, AEH (DIN 46228-1), Max: 25 mm²
- Connection Cross-section, Stranded, Max: 50 mm²
