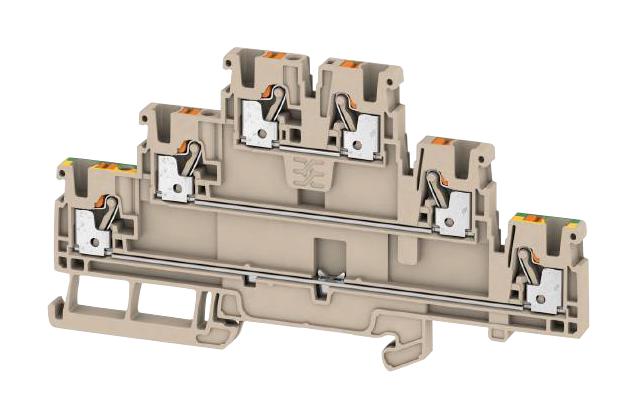

WEIDMULLER 2428530000 Feed-Through Terminal Block
The Weidmuller A3T 2.5 FT-FT-PE feed-through terminal block incorporates innovative PUSH IN technology, significantly reducing wiring time. This design guarantees robust conductor pull-out forces and simplifies handling for all conductor types. Ideal for industrial automation, control cabinets, and power distribution, this terminal block provides a reliable and efficient connection solution. It is designed for easy installation on TS 35 mounting rails and supports a wide range of conductor sizes, ensuring versatility in various applications.
WEIDMULLER 2428530000 Feed-Through Terminal Block Specifications:
- Width: 5.1 mm
- Height: 116 mm
- Depth: 64.5 mm
- Depth_including_DIN_rail: 65 mm
- Width_inches: 0.201 inch
- Height_inches: 4.567 inch
- Depth_inches: 2.539 inch
- Net_weight: 23.329 g
- Continuous_operating_temp_min: -60 °C
- Continuous_operating_temp_max: 130 °C
- Material: Wemid
- Colour_of_operational_elements: Orange
- Colour: Dark Beige
- UL_94_flammability_rating: V-0
- End_coverplate_required: Yes
- Number_of_levels: 3
- PE_connection: Yes
- N_function: No
- PEN_function: No
- Number_of_potentials: 3
- No_of_clamping_points_per_level: 2
- Mountingrail: TS 35
- Installation_advice: Mountingrail Snap-on
- Type_of_mounting: TS 35
- Open_sides: right
- Type_of_fixing: Snap-on
- With_snap_in_pegs: No
- Blade_size: 0.6 x 3.5 mm
- Clamping_range_min: 0.14 mm²
- Connection_cross_section_stranded_min: 0.5 mm²
- Gauge_to_IEC_60947_1: A3
- Strippinglength: 10 mm
- Twin_wire_end_ferrules_min: 0.5 mm²
- Wire_connection_cross_section_AWG_max: AWG 12
- Wire_connection_cross_section_finely_stranded_max: 2.5 mm²
- Wire_connection_cross_section_finely_stranded_with_wire_end_ferrules_DIN_46228_1_min: 0.5 mm²
- Wire_connection_cross_section_finely_stranded_with_wire_end_ferrules_DIN_46228_4_min: 0.5 mm²
- Wire_connection_cross_section_solid_core_max: 2.5 mm²
- Clampingrange_max: 2.5 mm²
- Connection_cross_section_stranded_max: 2.5 mm²
- Connection_direction: top
- Number_of_connections: 6
- Twin_wire_end_ferrules_max: 0.75 mm²
- Type_of_connection: PUSH IN
- Wire_connection_cross_section_AWG_min: AWG 28
- Wire_connection_cross_section_finely_stranded_with_wire_end_ferrules_DIN_46228_1_max: 2.5 mm²
- Wire_connection_cross_section_finely_stranded_with_wire_end_ferrules_DIN_46228_4_max: 2.5 mm²
- Wire_connection_cross_section_finely_stranded_min: 0.5 mm²
- Wire_connection_cross_section_solid_core_min: 0.5 mm²
- Rated_cross_section: 2.5 mm²
- Rated_current: 24 A
- Standards: DIN EN 60947-7-1, DIN EN 60947-7-2
- Rated_impulse_withstand_voltage: 8 kV
- Surge_voltage_category: III
- Rated_voltage: 800 V
- Current_at_maximum_wires: 24 A
- Volume_resistance_according_to_IEC_60947_7_x: 3.99 mΩ
- Pollution_severity: 3
- Certificate_No_cURus: E60693
- Conductor_size_Factory_wiring_min_cURus: 28 AWG
- Conductor_size_Field_wiring_min_cURus: 28 AWG
- Current_size_C_cURus: 20 A
- Voltage_size_B_cURus: 300 V
- Voltage_size_D_cURus: 600 V
- Conductor_size_Factory_wiring_max_cURus: 12 AWG
- Conductor_size_Field_wiring_max_cURus: 12 AWG
- Current_size_B_cURus: 20 A
- Current_size_D_cURus: 5 A
- Voltage_size_C_cURus: 300 V
- ETIM_6.0: EC000897
- eClass_9.1: 27-14-11-20
- eClass_6.2: 27-14-11-41
