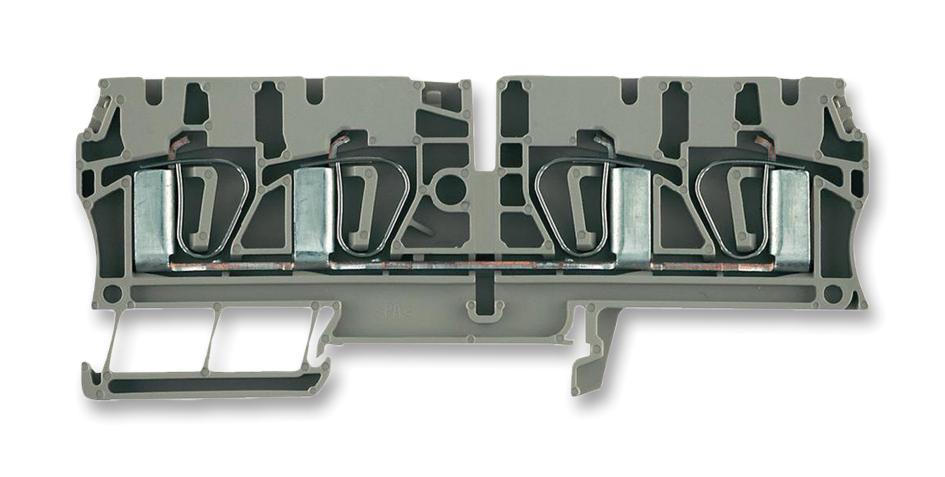

WEIDMULLER 7904290000 Industrial Terminal Block

The Weidmüller part number 7904290000 is a feed-through terminal block with tension clamp connection. Made from Wemid housing material, it is suitable for wire sizes from 26 AWG to 10 AWG. The terminal block is UL recognized and CSA certified, with a flammability rating of UL94 V-0. Its dimensions are 43mm x 104.5mm x 6.1mm (D x H x W), and it weighs approximately 21.32 grams. The dark beige-colored terminal block can operate continuously within a temperature range of -50°C to 120°C. It is designed for TS 35 mounting rails, has a rated cross section of 4 mm², a voltage rating of 800V, and a current rating of 32A. The pollution severity level is 3, adhering to IEC 60947-7-1, EAC, and CE standards. Suitable for industrial applications.

View 7904290000Datasheet [pdf]

Buy the Weidmueller 7904290000 – Reliable Terminal Block for Industrial Applications

Secure your electrical connections with the reliable Weidmüller industrial terminal block. Designed with tension clamp technology, it ensures fast, secure wiring suitable for versatile conductor sizes from 26 AWG to 10 AWG. Made from flame-retardant Wemid material, it operates efficiently within a temperature range of -50°C to 120°C. Perfect for automation and control panels, this rated 4mm², 800V, 32A terminal block offers high durability and compliance with IEC, UL, and CSA standards. Optimize your industrial wiring today!

Buy Weidmueller 7904290000 now and experience unmatched reliability and performance with high-quality tension clamp connections for industrial wiring.
