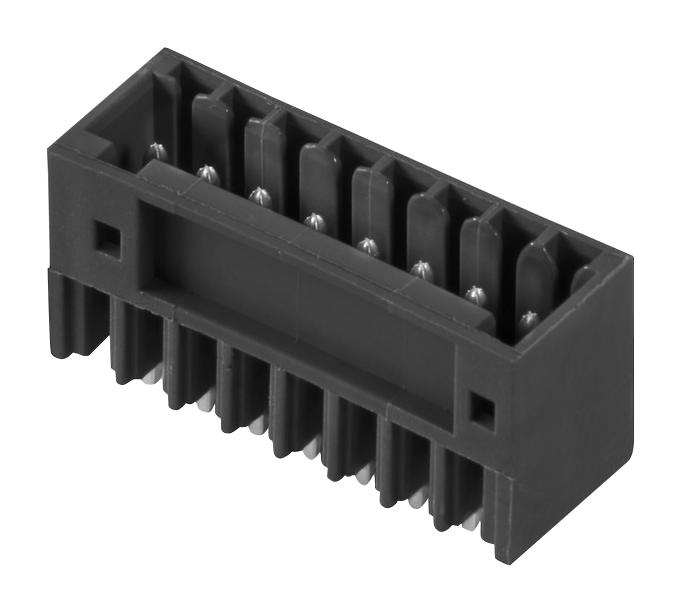

WEIDMULLER 2439910000 PCB Male Header
The OMNIMATE Signal series SL 2.50 male header is designed for wave soldering with a 2.50 mm pitch, featuring a straight plugging direction for PCB connections. It has a compact black insulating housing, robust copper alloy contact surfaces tinned for corrosion resistance, and a rated current of 6A at 320V according to IEC standards. Ideal for reliable THT soldering, it supports 25 plugging cycles, complies with UL and CSA safety standards, and measures 6.9mm wide, 13.3mm high, and 8.1mm deep. Suitable for various industrial and electronic applications demanding durable PCB connectors.
WEIDMULLER 2439910000 PCB Male Header Specifications:
- Pitch in mm: 2.50 mm
- Number of poles: 2
- Solder pin length: 3.2 mm
- Solder pin dimensions: 0.8x0.8 mm
- Eyelet hole diameter: 1.3 mm
- Contact material: Copper alloy, tinned
- Insulating material: PA 66, black, RAL 9011
- Dimensions: Width 6.9 mm, Height 13.3 mm, Depth 8.1 mm
- Rated current: IEC 6A, UL 5A, CSA 5A
- Rated voltage: IEC 320V, UL 150V, CSA 150V
- Operating temperature: -40°C to +105°C
- Touch-safe protection: IP00, 25 plugging cycles
- Flammability rating: UL 94V-0
Buy the Buy Weidmuller OMNIMATE Signal Series SL 2.50 Part Number 2439910000 Online
Order the Weidmuller OMNIMATE Signal Series SL 2.50 PCB male header online today to ensure secure and reliable connections on your PCB assembly. Designed for wave soldering with a 2.50 mm pitch, this connector features durable tinned copper contacts rated at 6A and 320V, supporting 25 plugging cycles. Its compact black housing measures 6.9mm wide and 13.3mm high, making it suitable for dense electronic boards. Enjoy fast, hassle-free online purchase for a high-quality, industry-standard connector that guarantees long-term performance and safety.
Buy Weidmuller OMNIMATE Signal Series SL 2.50 male header now and experience unmatched reliability and performance in PCB connection applications.
Frequently Asked Questions
Where can I buy WEIDMULLER 2439910000?
You can click on the BUY or RFQ button to purchase 2439910000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2439910000?
You can download the 2439910000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2439910000?
WEIDMULLER
