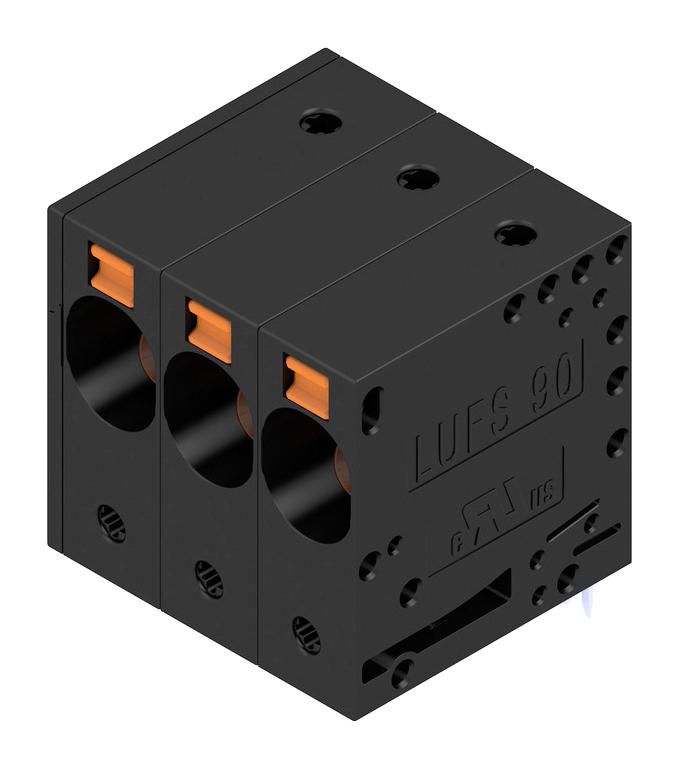

WEIDMULLER 2500460000 Power Terminal
The OMNIMATE Power series LUFS 10.00/03/90V 5.0SN BK BX is a high-performance PCB terminal featuring a push-in connection system suitable for conductor cross-sections up to 16 mm². This terminal offers tool-free, fast wiring with secure contact points, ensuring safe and reliable connections. It includes integrated test points for effective diagnostics, supports mounting on PCBs via THT soldering, and has a flexible conductor outlet direction of 180°. Its robust design is ideal for industrial automation, control systems, and power distribution applications, with UL and IEC certifications for safety and durability.
WEIDMULLER 2500460000 Power Terminal Specifications:
- Type: Printed circuit board terminal, 10.00 mm, 3 poles, 90°, Solder pin length: 5 mm, Black, Push-in connection without actuator
- Solder pin dimensions: d= 1.2 mm, octagonal, hole diameter: 1.6 mm, tolerance: + 0.1 mm
- Conductor cross-section: min. 0.5 mm², max. 16 mm² (AWG 18 to AWG 4), flexible, stranded, and solid wires compatible
- Insulating material: Wemid (PA), color: black, operational elements: PAAT GF, flammability rating: UL 94V-0, CTI >600
- Dimensions: Width 31.8 mm, Height 35 mm, Depth 28.55 mm, net weight: 28.89 g, mounting: THT soldering, conductor outlet direction: 180°
- Rated voltage: 1000 V IEC, 600 V UL, current: up to 76A IEC, 53A UL, operating temp: -40°C to +120°C
- Contacts: Copper alloy base, gold-plated where applicable, with secure clamping for conductor ranges up to 16 mm²
- Certifications: UL, IEC, RoHS compliant, tested accordance with standards IEC 60947-7-4, CSA, UL 1059
Buy the Weidmueller 2500460000 – Reliable Power Distribution Terminal for Industrial Applications
Purchase the Weidmueller Power Terminal now for robust, secure electrical connections in industrial automation and power distribution systems. Designed for easy, tool-free wiring with push-in technology, it supports conductor sizes up to 16 mm² and includes integrated test points for quick diagnostics. Its durable construction meets IEC and UL standards, ensuring safety, efficiency, and long-lasting performance. Perfect for panel wiring, control cabinets, and power setups, order online today for reliable, high-quality component availability and fast delivery.
Get Weidmueller 2500460000 today—built for precision, high reliability, and efficient power connections in industrial environments.
