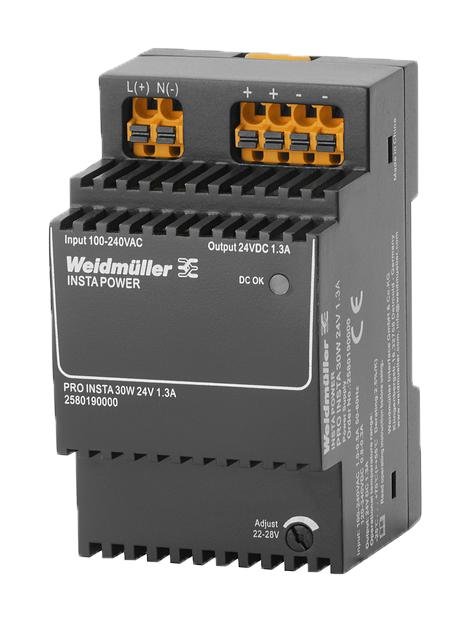

WEIDMULLER 2580190000 Industrial Power Supply
The PRO INSTA 30W power supply from Weidmueller provides reliable DC output of 24V and 1.3A, designed for automation, signal, and telecommunication systems. Featuring a compact, DIN rail mountable plastic housing, it operates efficiently within -25°C to +70°C. With a wide input voltage range of 85-264 VAC, it ensures dependable operation across various environments. Its high efficiency of 86%, low power loss, and excellent EMI and surge immunity make it suitable for demanding industrial applications, offering safety certifications and long MTBF for continuous use.
WEIDMULLER 2580190000 Industrial Power Supply Specifications:
- Dimensions: Width 54mm, Height 90mm, Depth 60mm
- Weight: 1929 g
- Operating temperature: -25°C to +70°C
- Storage temperature: -40°C to +85°C
- Input voltage: 85-264 VAC, 95-370 VDC
- Input current: 0.5A @230VAC, 0.2A @370VDC
- Output voltage: 22-28 V (adjustable), 24VDC nominal
- Output current: 1.3A maximum, 0.8A at 70°C
- Efficiency: 86%
- Protection degree: IP20
- MTBF: > 750,000 hours
- Connection system: PUSH IN terminals
- Vibration resistance: IEC 60068-2-6
- Shock resistance: IEC 60068-2-27
- Insulation voltage: Input/Earth 3.5 kV, Output/Earth 0.5 kV
- Pollution severity: Level 2
Buy the Weidmueller Series PRO INSTA Power Supply: 24V 1.3A 2580190000
Order the Weidmueller PRO INSTA power supply online today and enjoy fast delivery and trusted quality. With a compact design, wide input range, high efficiency, and robust build, this power supply ensures reliable operation in automation, telecommunications, and industrial applications. Its adjustable output voltage, low ripple, and extensive certifications provide peace of mind and optimal performance. Whether installing new systems or upgrading existing ones, this durable unit supports continuous, efficient power delivery in demanding environments. Make your purchase now for dependable power solutions.
Buy Weidmueller PRO INSTA 30W power supply now and experience unmatched reliability and performance in industrial automation and signal systems.
