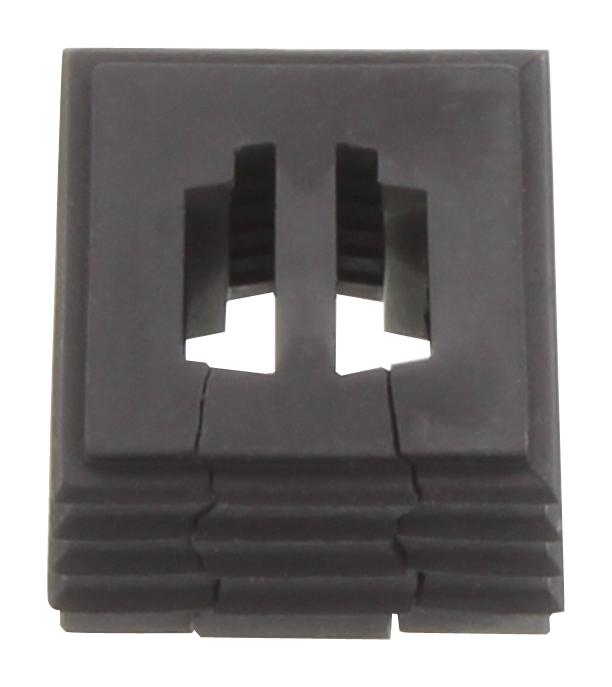

WEIDMULLER 2583520000 Cable Grommet
This conical-shaped grommet features a slotted, wave-cut design that allows for easy installation by pressing into the frame inlay from inside. It effectively seals gaps, provides strain relief in accordance with DIN EN 62444, and achieves an IP66 protection rating when combined with the frame inlay. Made from black, halogen-free, silicone-free, and UV-stabilized TPE, it is suitable for preassembled cables with specially designed openings for ASI cables. The grommet has a flammability rating of UL94 HB and operates within a temperature range of –40°C to +120°C (static).
WEIDMULLER 2583520000 Cable Grommet Specifications:
- Material: TPE, halogen-free, silicone-free, UV stabilized
- Color: Black, RAL 9005
- Design: Conical shape with wave cut, press-in installation
- Protection: IP66 according to DIN EN 60529
- Flammability: UL94 HB
- Temperature Range: –40°C to +120°C (static)
- Application: Suitable for preassembled cables and ASI cables with custom openings
- Sealing: Fully sealing and strain relief in accordance with DIN EN 62444
- Operating Environment: Suitable for industrial, control cabinet and enclosure applications
- Compatibility: Fits cable diameters within clamping range of 7-28 mm
Buy the Weidmuller Series Grommet: 2583520000
Secure your control cabinets and enclosures with the weidmuller cable grommet designed for ease of installation and high protection levels. Made from durable, UV-stabilized TPE, this black conical grommet is halogen-free and compliant with UL94 HB flammability standards. It provides an IP66 seal, protecting against dust and water ingress, and offers excellent strain relief in industrial environments. Its versatile design fits cable diameters from 7 to 28 mm, ensuring a snug fit and reliable sealing for both preassembled and custom cables. Purchase online today for maximum safety and performance in demanding applications.
Order your Weidmuller Series Grommet 2583520000 today and ensure reliable sealing and strain relief for your preassembled cables in harsh environments.
