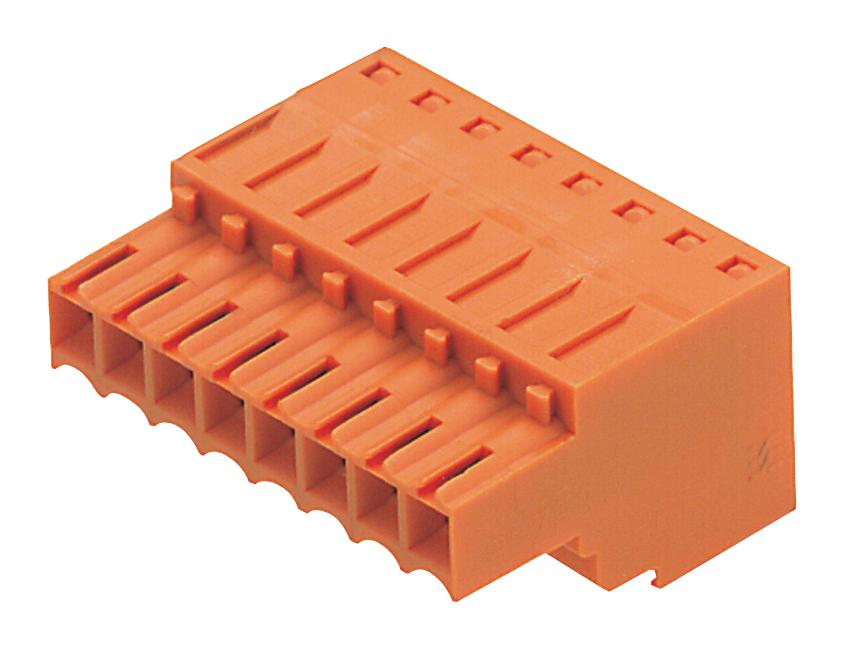

WEIDMULLER 1703710000 PCB Terminal
The OMNIMATE Signal series LM2N is a compact PCB terminal with proven clamping yoke connection, featuring a 3.5 mm pitch and suitable for conductor cross-sections up to 1.5 mm?. It supports a maximum voltage of 320 V (IEC) and 300 V (UL), with rated currents of 13A (IEC) and 10A (UL). Designed for through-hole mounting on PCBs, it offers easy single-pole connections, ensuring secure and reliable electrical contact in industrial applications. The terminal's orange insulating material and tinned copper contact surface enhance durability and corrosion resistance.
WEIDMULLER 1703710000 PCB Terminal Specifications:
- Pitch: 3.5 mm (0.138 inch)
- No. of poles: 6
- Solder pin length: 3.2 mm
- Solder pin dimensions: 1.0x0.6 mm
- Solder eyelet hole diameter: 1.3 mm
- Clamping range: 0.2 - 2.08 mm
- Rated voltage IEC: 320 V, UL: 300 V
- Rated current IEC: 13 A, UL: 10 A
- Wire cross-section: 28-14 AWG (UL), 0.5-1.5 mm² (IEC)
- Material: PA (Orange), contact: Copper alloy, Tinned surface
- Operating temperature: -60°C to 100°C
- Storage temperature: -25°C to 55°C
- Tightening torque: 0.2 Nm
- Ingress protection: IP20
- UL 94 flammability rating: V-2
- Standards: IEC 60664-1, IEC 61984, UL 1059
- Certifications: RoHS compliant, recognized by CSA and UL
Buy the Weidmueller LM2N – Reliable PCB Terminal for Industrial Applications
Upgrade your electronics assembly with the highly reliable Weidmueller PCB terminal from the OMNIMATE Signal series LM2N. Featuring a precise 3.5 mm pitch, it supports conductor cross-sections from 0.5 to 1.5 mm² and provides secure clamping through proven yoke technology. Rated for up to 320 V and 13A, it offers easy SMD mounting with robust copper contacts and IP20 protection. Perfect for industrial, automation, or control panel wiring, order online now to ensure quick delivery and quality for your projects.
Order your Weidmueller Series LM2N PCB terminal today and enhance your project with dependable, easy-to-install connection components.
