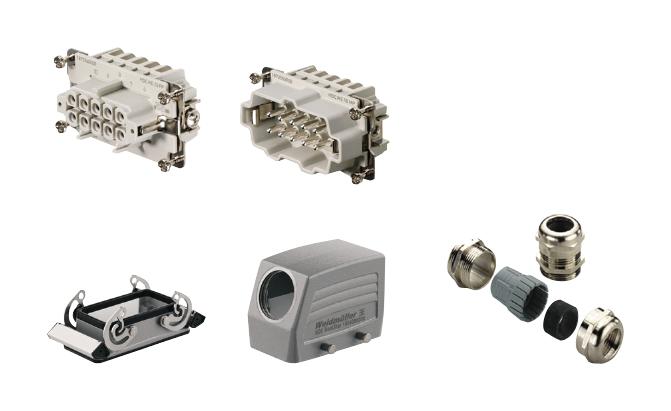

Weidmuller HDCKITHEP10110M Heavy Duty Connector Kit
The Weidmüller HDC kit HE-P 10.110 M is a heavy-duty plug-in connector kit designed for industrial wiring. Featuring push-in connection technology, it allows direct wire insertion without tools for quick installation. Made with diecast aluminum, it supports up to 10 poles with a maximum conductor cross-section of 4 mm² and a minimum of 0.5 mm². Rated for 16A at 500V, it operates within temperatures from -40°C to 100°C. The kit includes male and female inserts, a plug housing, a bulkhead housing, and a cable gland with M25 thread, making it ideal for robust, reliable electrical connections in demanding environments.
Weidmuller HDCKITHEP10110M Heavy Duty Connector Kit Specifications:
- Poles: 10
- Material: Diecast aluminium
- Rated current: 16A
- Rated voltage: 500V
- Connection type: PUSH IN
- Temperature range: -40°C to 100°C
- Cable gland: M25 thread
- Conductor cross-section: 0.5 mm² to 4 mm²
- Net weight: 498g
- Size: 4
- Approvals: RoHS, Conform
Buy the Weidmueller Series HDC Heavy Duty Connector Kit: HDCKITHEP10110M
Enhance your industrial electrical connections with the Weidmüller heavy-duty connector kit featuring push-in technology for quick, tool-free wiring. Crafted from durable diecast aluminum, it offers reliable performance in demanding environments. With 10 poles supporting up to 16A at 500V, and an operating temperature range of -40°C to 100°C, this kit includes male and female inserts, a plug housing, bulkhead housing, and an M25 cable gland. Perfect for professional installations requiring secure, fast, and durable electrical connections in industrial applications.
Get Weidmueller HDCKITHEP10110M today—built for robust industrial wiring with push-in connection technology and high durability.
