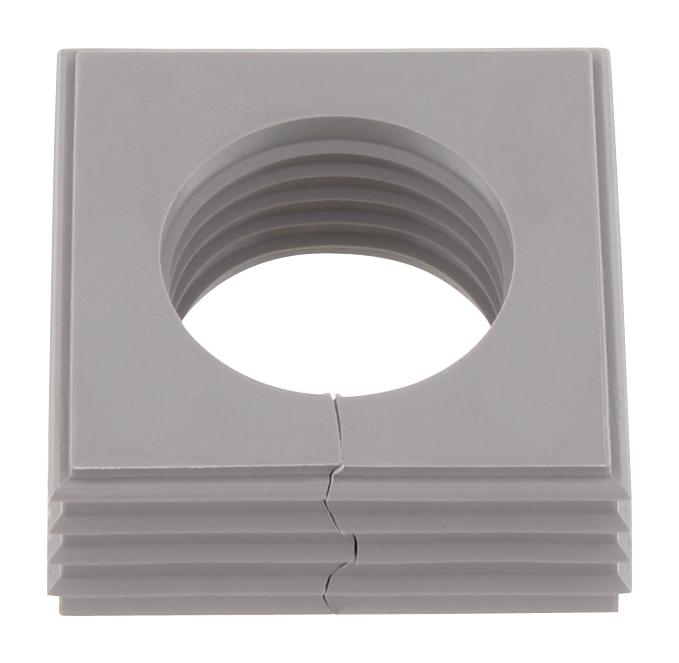

WEIDMULLER 2584390000 Conical Grommet

This conical grommet features a slotted design with a wave cut, making it easy to install by simply pressing into place from inside the frame inlay. It seals gaps effectively and provides strain relief in accordance with DIN EN 62444 standards. The grommet, combined with the frame inlay, achieves an IP66 protection rating, ensuring high durability and protection against dust and water. Made from halogen-free and silicone-free grey thermoplastic elastomer, it is suitable for preassembled cables with a clamping range of 26mm to 27mm. The material has a flammability rating of UL94 V0 and can operate safely within a temperature range of -40°C to +90°C under static conditions.

View 2584390000Datasheet [pdf]

Buy the Weidmuller Series Conical Grommet Sealing: Part Number 2584390000

Secure your control cabinets and enclosures efficiently with our Conical Grommet. Designed for easy press-in installation, it provides IP66 sealing, strain relief, and high durability. Made from halogen-free and silicone-free grey thermoplastic elastomer, this gasket suits cables with a clamping range of 26 to 27 millimeters. It withstands temperatures from -40°C to +90°C and complies with safety standards including UL94 V0 flammability. Perfect for preassembled cables, ensuring safety, reliability, and easy maintenance for industrial applications.

Order your Weidmuller Conical Cable Grommet today and enhance your cable management with high protection and easy installation for industrial enclosures.
