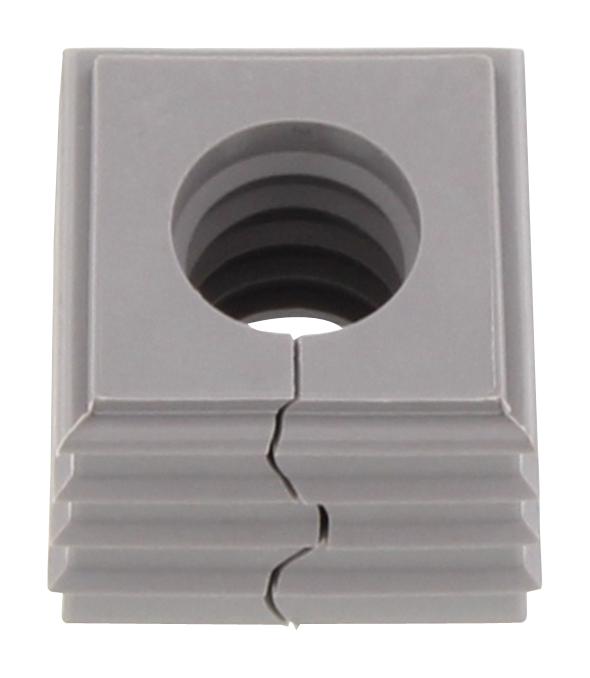

WEIDMULLER 2584610000 conical grommet
This conical-shaped grommet features a slotted design with wave cut, allowing easy installation by pressing into place from inside the frame inlay. It seals gaps reliably and ensures strain relief according to DIN EN 62444 standards. When used with the frame inlay, it attains an IP66 protection rating. Made from halogen-free, silicone-free grey thermoplastic elastomer (TPE), this grommet is suited for preassembled cables with a clamping diameter of 10mm to 11mm. It is UL94 V0 flame-rated and withstands temperatures from -40°C to +90°C in static use.
WEIDMULLER 2584610000 conical grommet Specifications:
- Material: Halogen-free, silicone-free grey thermoplastic elastomer (TPE)
- Design: Conical shape with wave cut, slotted for easy installation
- Sealing: Reliable sealing, IP66 rating with frame inlay
- Clamping Range: 10mm to 11mm cable diameter
- Flammability: UL94 V0
- Temperature Range: -40°C to +90°C (static)
- Protection Level: IP66 according to DIN EN 60529
- Compliance: DIN EN 62444 strain relief standards
Buy the Buy Weidmuller Conical Grommet Part Number 2584610000 Online
Secure your control panels and enclosures with the Weidmuller conical grommet, part number 2584610000. Made from flame-rated TPE, it offers excellent sealing, strain relief, and easy installation through pressing. Its wave-cut, slotted design ensures IP66 protection and reliable gap sealing. Suitable for pre-assembled cables with 10mm to 11mm diameter, it withstands static temperatures from -40°C to +90°C, making it ideal for industrial environments requiring high chemical resistance and flame safety compliance.
Order your Weidmuller Conical Grommet 2584610000 today and enhance your cable sealing and strain relief with reliable quality for demanding environments.
