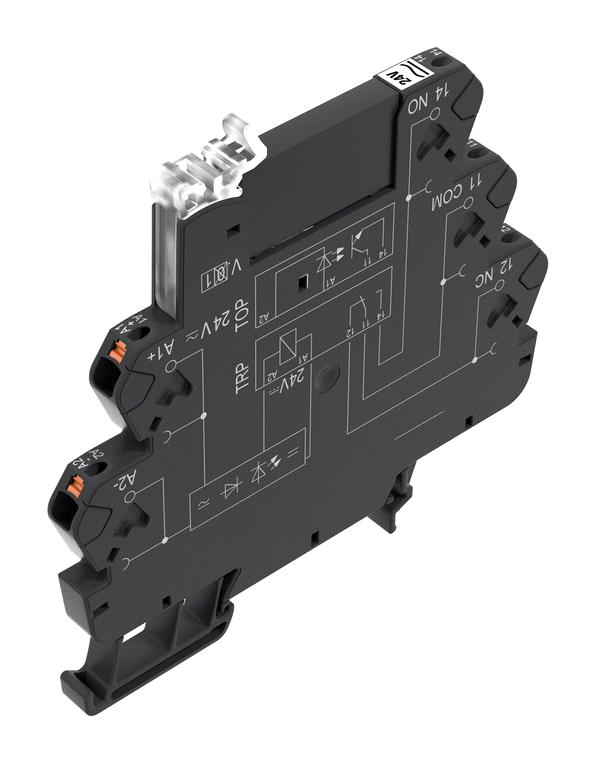

WEIDMULLER 2618640000 TERMSERIES Solid-State Relay Module
The WEIDMULLER TERMSERIES TOP 24VUC 48VDC0.1A is a versatile solid-state relay module suitable for a wide range of industrial applications. It combines a solid-state relay with a base, offering AC/DC/UC input options. Key features include screw and tension-clamp connections, a compact 6.4mm width, optional multiple-voltage input (24-230V UC), and protective circuits like free-wheel diodes and RC elements. The module's illuminated ejection lever provides visual status indication. It is ideal for applications requiring reliable and efficient switching with minimal maintenance.
WEIDMULLER 2618640000 TERMSERIES Solid-State Relay Module Specifications:
- Type: TOP 24VUC 48VDC0.1A
- Order No.: 2618640000
- Version: TERMSERIES, solid-state relais, 1 NO contact (Bipolar transistor)
- Rated control voltage: 24 V UC ±10 %
- Rated switching voltage: 0…48 V DC
- Continuous current: 100 mA
- Width: 6.4 mm
- Height: 89.4 mm
- Depth: 87.8 mm
- Net weight: 27 g
- Humidity: 5-95% relative humidity
- Operating temperature, min: -20 °C
- Storage temperature, min: -40 °C
- Operating temperature, max: 60 °C
- Storage temperature, max: 70 °C
- MTTF: 2,762 Years
- Ambient temperature (operational), max: 60 °C
- Connection cross-section AWG, max: AWG 14
- Pollution severity level: 2
- Connection cross-section AWG, min: AWG 26
- Type of conductor: rigid copper conductor, flexible copper conductor
- Power rating: 154 mW
- Nominal control current: 10 mA AC ±20 %, 6 mA DC(±20 %)
- Cut-in / dropout voltage: 18 V / 12 V AC, 14 V/13 V DC
- Protective circuit: Rectifier
- Coil voltage of the replacement relay: 24 V DC
- Rated switchingvoltage: 0…48 V DC
- Switch-on delay: < 55µs
- Voltage drop at max. load: ≤ 1 V
- Min. switching current: 500µA
- Protective circuit, load side: Free-wheeling diode
- max. switching frequency (DC control voltage): 100 Hz
- Switch-off delay: < 4 ms
- Leakage current: < 10µA
- Short-circuit-proof: No
- max. switching frequency (AC control voltage): 3 Hz
- Contact type: 1 NO contact (Bipolar transistor)
- Rail: TS 35
- Colour: black
- Standards: DIN EN 50178
- Clamping range, rated connection: 1.5 mm²
- Clamping range, max: 2.5 mm²
- Wire connection cross section AWG, max: AWG 14
- Wire cross-section, solid, max: 2.5 mm²
- Wire connection cross-section, finely stranded, max: 2.5 mm²
- Wire connection cross section AWG, min: AWG 26
- Wire cross-section, solid, min: 0.14 mm²
- Wire connection cross-section, finely stranded, min: 0.14 mm²
- Wire cross-section, finely stranded, min (AWG): AWG 26
- Blade size: 0.4 x 2.0 mm
