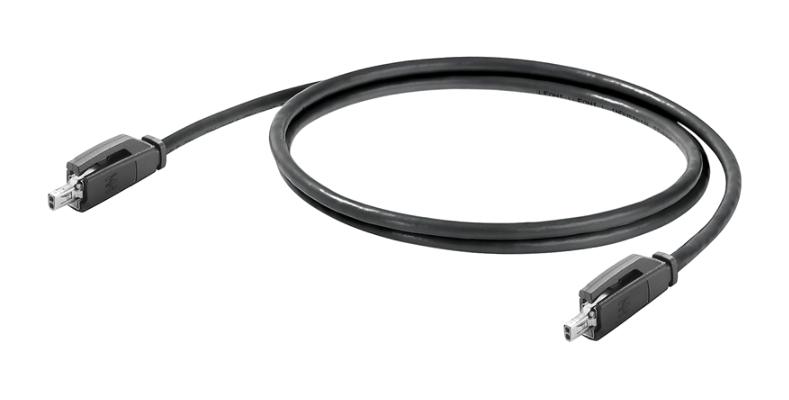

WEIDMULLER 2725850010 Single Pair Ethernet Patch Cable
The Weidmuller IE-S1DS2VE0010T01T01-E is a Single Pair Ethernet (SPE) patch cable designed for consistent and flexible communication from sensors to the cloud. This cable offers future-proof connectivity, enabling uniform Ethernet-based communication. Its lightweight design, reduced space requirements, and ease of installation make it ideal for a wide range of industrial applications, particularly in Industry 4.0 and IIoT deployments. The cable features a PVC sheath, copper shielding, and supports speeds up to 1 Gbps, ensuring reliable data transmission.
WEIDMULLER 2725850010 Single Pair Ethernet Patch Cable Specifications:
- Length: 1 m
- Net Weight: 0.042 g
- Operating Temperature: -40 °C ... 80 °C
- Application Specific Communication Cable Facilities: ISO/IEC 11801-1 Amd.1, ISO/IEC 11801-3 Amd.1, ISO/IEC 11801-6 Amd.1
- Dielectric Strength Contact/Contact: 1000 V DC
- Dielectric Strength Contact/Shield: 2250 V DC
- Rated Voltage: 60 V
- Connector Standard: IEC 63171-2
- Cable Structure Colour Coding: white/blue
- Cable Structure Cross-Section: 2*AWG 22
- Cable Structure Insulation Diameter: 2.165 mm
- Cable Structure Number of Wires: 2
- Cable Structure Sheath Diameter (Max): 5.3 mm
- Cable Structure Sheathing Colour: black
- Cable Structure Strands: 7
- Cable Structure Shielding: STP
- Cable Structure Material Sheath: PVC
- Cable Structure Overlap of Shielding Braid: 80 %
- Cable Structure Sheath Diameter (Min): 4.9 mm
- Cable Structure Insulation: PE
- Cable Electrical Properties Capacity at 800 Hz: 1.6 nF/km
- Cable Electrical Properties Characteristic Impedance: 100 ± 15 Ω at 20 MHz
- Cable Electrical Properties Coupling Attenuation upto 1000 MHz: 80 dB
- Cable Electrical Properties Rated Current: 3.5 A
- Cable Electrical Properties Test Voltage Wire-Wire-Shield: 1 kV DC, 1 min
- Cable Electrical Properties Operating Voltage: 300 V
- Cable Electrical Properties Resistance Differential: 2 %
- Cable Electrical Properties Transmission Rate: 10/100 MBit/s, 1000 Mbit/s
- Bending Radius: 20 mm
- Halogen Content: Yes
- Resistance to Spread of Flame: FT1
- Resistance to Oils: IRM 902/903 oil resistance test at (70℃x4h)
- UV Resistance: Complies with UL 1581 Sec. 1200
- Connector Left: Plug acc. to IEC 63171-2, SPE plug (IEC 63171-2) - IP20 female straight
- Connector Right: Plug acc. to IEC 63171-2, SPE plug (IEC 63171-2) - IP20 female straight
- Housing Main Material: Elastollan
- ETIM 6.0: EC002599
- ECLASS 9.0: 27-06-03-08
- ECLASS 10.0: 27-06-03-08
- ETIM 7.0: EC002599
- ECLASS 9.1: 27-06-03-08
- ECLASS 11.0: 27-06-03-08
