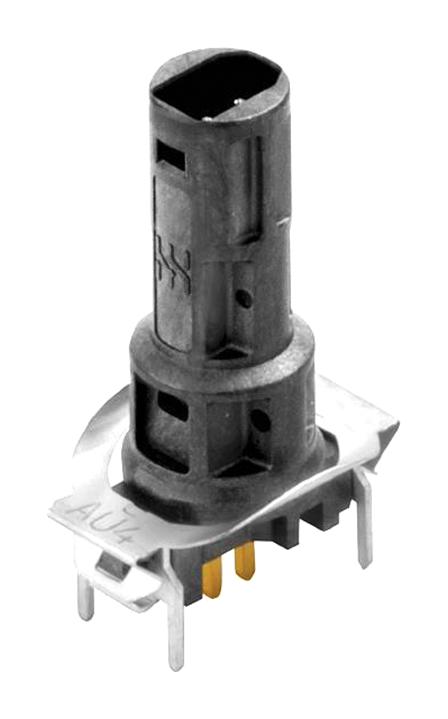

WEIDMULLER 2735920000 Single Pair Ethernet Connector
The Weidmuller IE-PCB-SPM-P-180-THR connector utilizes Single Pair Ethernet (SPE) technology, enabling data and power transmission over a single pair of wires. This innovative design provides numerous advantages, including uniform Ethernet-based communication from sensors to the cloud, future-proof compatibility with Industry 4.0 and IIoT systems, and a flexible design suitable for various applications with ranges up to 1000m and transmission rates up to 1 Gbps. The connector features a THR solder connection, M8 configuration, and robust construction for reliable performance in industrial environments.
WEIDMULLER 2735920000 Single Pair Ethernet Connector Specifications:
- Net weight: 3 g
- Operating temperature: -40 °C...85 °C
- Contact carrier material: LCP, THR solder connection, V-0, M8, Ni/Au
- Connection 1: M8 - Male
- Connection 2: Configuration, Reflow compatible
- UL 94 flammability rating: T1-B
- Contact material: Copper alloy
- Plugging cycles: ≥ 100
- Current-carrying capacity: 3.5 A
- Dielectric strength, contact/contact: 1000 V DC
- Dielectric strength, contact/shield: 2250 V DC
- Insulation strength: ≥ 500 MΩ
- Operational voltage range: ≤ 50 V AC, ≤ 60 V DC
- Rated voltage: 72 V
- Connector standard: IEC 63171-5
- ETIM 6.0: EC000438, 27-44-02-05, 27-44-02-23
- ETIM 7.0: EC003557
- ROHS: Conform
