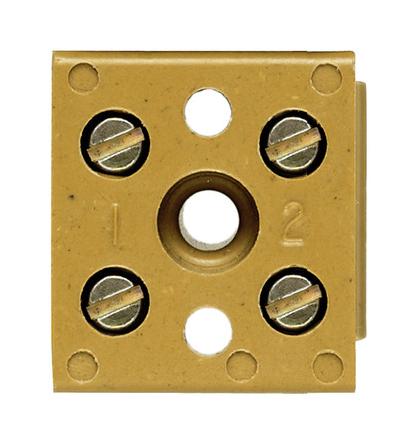

WEIDMULLER 7906040000 Multipin Terminal Strip
The Multipin terminal strip offers high reliability and flexible design options with clamping yoke technology for industrial wiring, providing safe, easy, and secure connections. This versatile strip features screw connections, direct mounting, rated cross-section of 4 mm², and various certifications including IECEx, ATEX, and UL. Its compact dimensions of 22 mm width, 20 mm height, and 20 mm depth ensure efficient space utilization. Made from yellow-colored KRG material rated V-0 and 5VA, it withstands temperatures from -25°C to 55°C for both storage and operation, making it suitable for explosion-proof environments and industrial control systems.
WEIDMULLER 7906040000 Multipin Terminal Strip Specifications:
- Width: 22mm (0.866 inch), Height: 20mm (0.787 inch), Depth: 20mm (0.787 inch), Net weight: 14.649 g
- Rated cross-section: 4 mm², Max. voltage (IECEx/ATEX): 275V, Max. current (IECEx/ATEX): 28A
- Operating temperature range: -25°C to 55°C, Storage temperature: -25°C to 55°C, Continuous operation: 60°C to 130°C
- Material: KrG, Color: medium yellow, Flammability rating: UL 94 V-0, 5VA
- Wire connection: max. AWG 12, min. AWG 22, Stripping length: 8mm, Clamping range: 0.33mm to 4mm
- Tightening torque: 0.5 Nm to 0.6 Nm, Connection type: screw, Fire and explosion-proof certifications: IECEx and ATEX, CSA rating: 10A/300V
- Standards compliance: IEC 60947-7-1, pollution severity: 3, Power loss: 1.02 W at rated conditions, Max. impulse voltage: 6 kV
Buy the Weidmiiller BK 2/E – Reliable Multipin Terminal Strip for Industrial Applications
Enhance your industrial control systems with the Weidmiiller BK 2/E multipin terminal strip, featuring rated cross-section of 4 mm², screw connection, and robust certifications including IECEx, ATEX, and UL. Its compact dimensions of 22 mm width and 20 mm height make installation easy in limited spaces. Designed to operate safely within -25°C to 55°C, it offers reliable wiring for explosion-proof environments. Ensure operational safety and efficiency by ordering this versatile terminal strip online today for your automation and control projects.
Order your Weidmiiller BK 2/E series multi-pole terminal strip today and give your industrial wiring projects the dependable, safe, and efficient connection solution they deserve.
