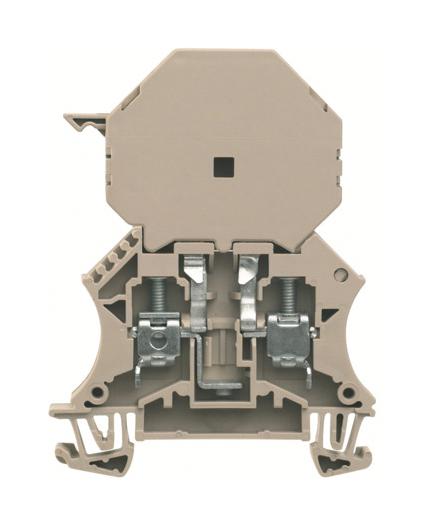

WEIDMULLER 1014400000 Fuse Terminal
The W-Series WSI 6/2/LD 250AC fuse terminal features screw connections for reliable wiring and safe operation. Designed with a dark beige Wemid material rated UL 94 V0 for flame retardancy, it supports a maximum rated cross-section of 6 mm² and a rated voltage of 250V. The terminal supports wire sizes from 20 to 8 AWG, with a maximum conductors for factory wiring of 8 AWG and field wiring of 8 AWG. It includes a fuse indicator LED, and its compact dimensions of 11.9 mm width, 60 mm height, and 78.5 mm depth ensure efficient space utilization in electrical panels, providing a secure connection for fuse isolation and control applications.
WEIDMULLER 1014400000 Fuse Terminal Specifications:
- Width: 11.9 mm (0.469 inch)
- Height: 60 mm (2.362 inch)
- Depth: 78.5 mm (3.091 inch); including DIN rail: 79.5 mm
- Material: Wemid, flammability rating UL 94 V0
- Rated voltage: 250V; Rated cross-section: 6 mm²
- Temperature range: -25°C to 120°C, storage max 55°C
- Wire connection: 20-8 AWG, finely stranded with wire-end ferrules DIN 46228/1 and 46228/4
- Clampable wire size: min 0.5 mm², max 10 mm²
- Tightening torque: 0.8-1.6 Nm
- Display element: Red LED for fuse status, operating voltage 6V to 150V AC
- Standards: IEC 60947-7-3, UL 94 V0
- Connections: 2 clamp points, single potential level, screw connection with end cover plate
- CSA certification: max 8 AWG, min 22 AWG
- Explosion-tested: No
- Approvals include RoHS, UL, and international certificates
Buy the Buy Weidmueller Fuse Terminal Part Number 1014400000 Online
Purchase the Weidmueller fuse terminal Part Number 1014400000 online today to ensure a safe and reliable electrical connection in your control panels. This high-quality fuse terminal features screw connections that support wire sizes from 20 to 8 AWG, rated for 6 mm² cross-section, and is suitable for operating voltages up to 250V. Its compact and robust design ensures easy installation and reliable performance in industrial and automation applications. Buy now for fast delivery and professional-grade quality guaranteed to meet your project needs.
Buy Weidmueller 1014400000 fuse terminal now and experience unmatched reliability and performance for secure electrical connections and fuse isolation.
