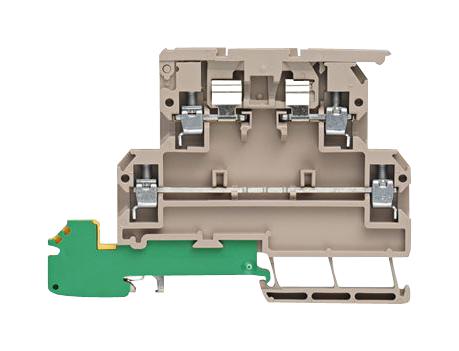

WEIDMULLER 9532450000 Fuse Terminal Block
The Weidmuller KDKS 1/PE/35 DB is a fuse terminal block within the W-Series, designed for robust and reliable connections in industrial environments. It utilizes clamping yoke technology, ensuring secure and easy connections while optimizing operational safety. The terminal block features a fuse isolator, PE connection, and is suitable for applications requiring a three-level design with multiple potentials. It is compatible with TS 35 rails and offers a wide clamping range for various conductor sizes, making it a versatile solution for power distribution and control systems. Its robust Wemid material construction and V-0 flammability rating ensure durability and safety in demanding conditions.
WEIDMULLER 9532450000 Fuse Terminal Block Specifications:
- Width: 8 mm
- Height: 91 mm
- Depth: 65 mm
- Net weight: 28.6 g
- Width(inches): 0.315 inch
- Height(inches): 3.583 inch
- Depth(inches): 2.559 inch
- Continuous operating temp. min: -50 °C
- Continuous operating temp. max: 120 °C
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour code: dark beige
- Version: Screw connection, Fuse isolator, With PE connection, One end without connector
- End coverplate required: Yes
- Number of levels: 3
- Number of potentials per tier: 1
- PE connection: Yes
- N-function: No
- PEN function: No
- Tightening torque (clamping screw for copper conductors): 0.5...1 Nm
- Number of potentials: 3
- No. of clamping points per level: 2
- Levels cross-connected internally: No
- Rail: TS 35
- Wire connection cross section, finely stranded, two clampable wires, min: 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min: 0.5 mm²
- Wire cross-section, finely stranded, two clampable wires, max: 1 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max: 1 mm²
- Explosion-tested version: No
- Open sides: right
- Number of similar terminals: 1
- Type of mounting: Snap-on
- Certificate No.(CSA): 12400-281
- Wire cross section min. (CSA): 26 AWG
- Wire cross section max.(CSA): 12 AWG
- Rated short-time current: 300 A (2.5 mm²)
- Rated cross-section: 4 mm²
- Rated voltage: 250 V
- Rated current: 6.3 A
- Volume resistance according to IEC 60947-7-x: 2 mΩ
- Rated impulse withstand voltage: 6 kV
- Pollution severity: 3
- Surge voltage category: III
- Certificate No.(UR): E60693
- Conductor size Factorywiringmax.(UR): 12 AWG
- Conductor size Factorywiringmin.(UR): 26 AWG
- Conductor size Field wiringmax.(UR): 12 AWG
- Conductor size Field wiring min. (UR): 22 AWG
- ETIM 3.0: EC000899
- ETIM 5.0: EC000900
- UNSPSC: 30-21-18-11
- eClass 6.2: 27-14-11-28
- eClass 8.1: 27-14-11-16
- eClass 9.1: 27-14-11-16
- ETIM 4.0: EC000900
- ETIM 6.0: EC000899
- eClass 5.1: 27-14-11-28
- eClass 7.1: 27-14-11-28
- eClass 9.0: 27-14-11-16
