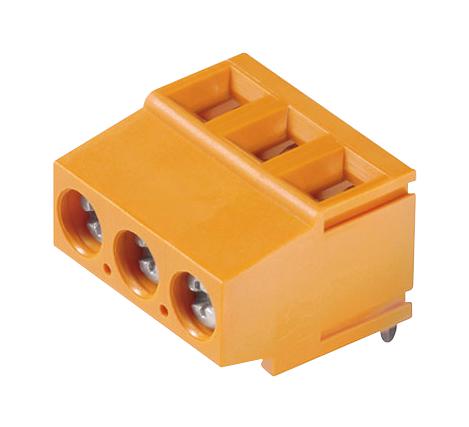

WEIDMULLER 9995030000 Signal Connector
The Weidmuller OMNIMATE Signal series LM 9995030000 is a PCB terminal block designed for reliable electrical connections. It utilizes a clamping yoke connection mechanism, ensuring a secure and consistent termination of conductors. The 5.08mm pitch allows for compact designs, while the 180-degree conductor outlet direction provides flexibility in routing. Suitable for a wide range of industrial applications requiring robust and space-efficient connectivity, this terminal block is ideal for automation, control systems, and power distribution.
WEIDMULLER 9995030000 Signal Connector Specifications:
- Material: Copper alloy, Wemid (PA)
- Color: Orange
- Insulating Material Group: I
- Flammability Rating: V-0
- Contact Surface: tinned
- Operating Temperature Max: 120 °C
- Operating Temperature Min: -50 °C
- Storage Temperature Max: 55 °C
- Storage Temperature Min: -25 °C
- Conductor Outlet Direction: 180°
- Pitch: 5.08 mm
- Number of Poles: 10
- Clamping Range Min: 0.2 mm²
- Clamping Range Max: 2.5 mm²
- Solid Conductor Max: 2.5 mm²
- Flexible Conductor Max: 2.5 mm²
- Rated Voltage IEC: 630 V
- Rated Current IEC: 17.5 A
- Rated Voltage UL: 300 V
- Rated Current UL: 20 A
- Solder Pin Length: 3.5 mm
- Stripping Length: 6 mm
- Tightening Torque Min: 0.4 Nm
- Tightening Torque Max: 0.5 Nm
- UL Listing: E60693
- ETIM: EC002643
