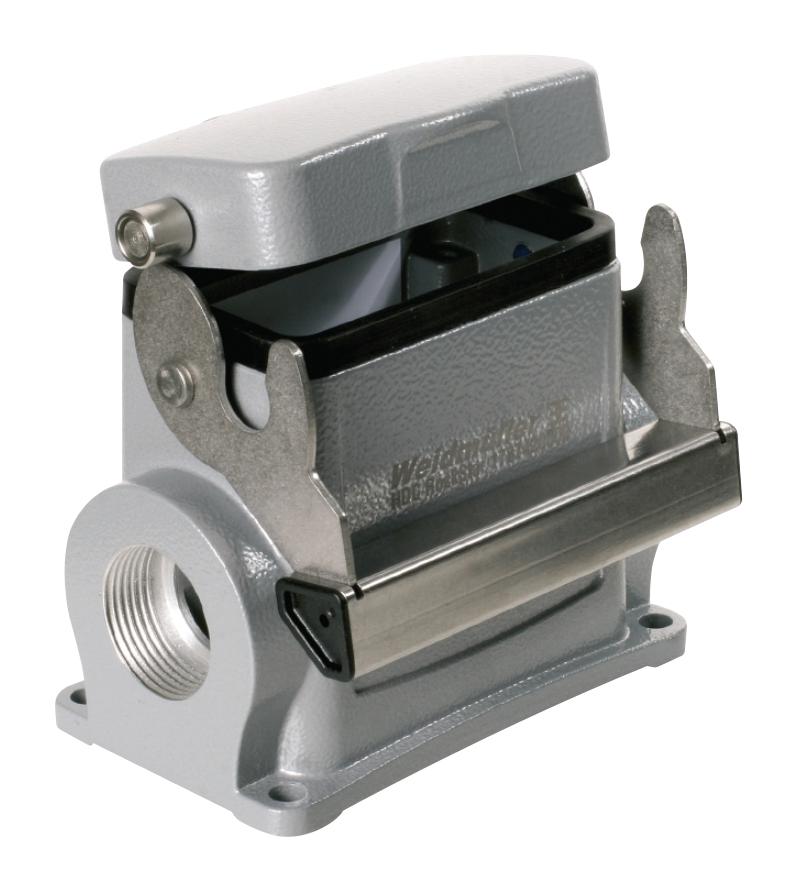

WEIDMULLER HDC24DSDLU2M25G Industrial Enclosure
HDC 24D SDLU 2M25G enclosures are robust industrial housings made from die-cast aluminium, featuring IP65 protection for outdoor or harsh environments. These enclosures include stainless steel interlock systems for long-lasting corrosion and impact resistance, with a patented spring locking mechanism ensuring safety and preventing accidental opening. Designed for compliance with EMC standards, they incorporate M25 cable entries, suitable for modular plug connections. The housings are powder-coated, with laser markings for quick identification, making them ideal for reliable industrial, control, and automation applications.
WEIDMULLER HDC24DSDLU2M25G Industrial Enclosure Specifications:
- Material: Die-cast aluminium with powder coating
- Protection Degree: IP65 with secured cover
- Dimensions: Length 92.5mm, Width 100.9mm, Height 96.5mm
- Mounting Dimension: Width 82mm, Height 45mm
- Cable Entry: M25 with threading, two side entries
- Temperature Range: -40°C to +125°C
- Locking Element Material: Stainless steel, rust-proof
- Net Weight: 437g
- Surface Finish: Powder coating
- Suitable for ModuPlug® connections
- Base Enclosure Design: High, with cover, lower part
- Sealing Material: NBR
- Approvals: RoHS compliant
- Certifications: IP65, EMC compliant
Buy the Weidmiiller Series HDC Enclosures: IP65 Industrial Housing HDC 24D SDLU 2M25G
Order the Weidmiiller HDC 24D SDLU 2M25G industrial enclosure online today. This heavy-duty aluminium housing features IP65 protection, M25 cable entries, and stainless steel locks, ensuring durability and safety for outdoor or demanding applications. With laser marking for easy identification, powder-coated surface, and a temperature range of -40°C to +125°C, it guarantees long-term performance. Suitable for control and automation systems, this enclosure provides reliable protection against dust, water, and impact, making it an excellent choice for industrial installations.
Buy Weidmiiller HDC 24D SDLU 2M25G now and experience unmatched reliability and performance in harsh industrial environments.
