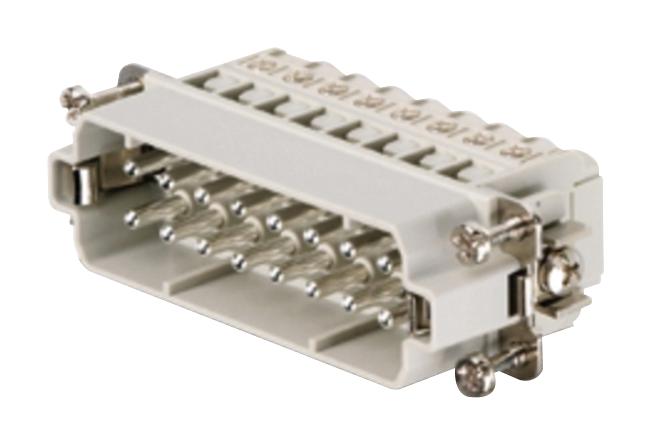

Weidmuller HDCHA16MS1732 High-Quality Connector Insert
The HDC HA 16 MS 17-32 is a compact, high-quality connector insert designed for space-constrained applications. It features a screw connection type suitable for 16 poles, rated for 250 V and 16 A, with a slim form factor measuring 73mm in length, 23mm in width, and 29mm in height. Made from copper alloy with silver passivated surface finish, it offers robust insulation resistance, rated up to 10^6 ohms, and is UL-listed for safety. Ideal for modular and industrial wiring, it supports up to 2500 plugging cycles with a temperature limit of 40°C to 125°C.
Weidmuller HDCHA16MS1732 High-Quality Connector Insert Specifications:
- Length: 73 mm (2.874 inches), Width: 23 mm (0.906 inches), Height: 29 mm (1.142 inches)
- Net weight: 669 g
- Rated voltage: 250 V, Rated impulse voltage: 4 kV
- Rated current: 16 A, Poles: 16
- Temperature range: 40°C to 125°C
- Material: Copper alloy, Insulating material: PC glass-fibre reinforced
- Surface finish: Silver passivated
- Insulation resistance: >10^6 ohms, Volume resistance: <2 mΩ
- Connection: Screw terminal with M4 fixing screw, Stripping length: 10 mm
- Conductor cross-section: Max 2.5 mm² (AWG 14), Min 0.5 mm² (AWG 20)
- Pollution severity: 3, No. of plugging cycles: 2500
- Recognition: UL listed, CSA certified, RoHS compliant
Buy the Buy Weidmueller HDC HA 16 MS 17-32 Part Number 1650880000 Online
Order the Weidmueller HDC HA 16 MS 17-32 online today to ensure your projects benefit from precise, durable, and space-efficient wiring connections. This connector features a compact design with screw terminals rated for 250 V and 16 A, crafted from durable copper alloy with a silver passivated surface for excellent corrosion resistance. Its robust insulation resistance and multiple plugging cycles guarantee long-term performance in industrial environments. Suitable for modular systems, it simplifies wiring while maintaining safety and reliability, making it the ideal choice for engineers and installers seeking top-tier components.
Buy Weidmueller HDC HA 16 MS 17-32 now and experience unmatched reliability and space-saving performance for your industrial wiring needs.
Frequently Asked Questions
Where can I buy Weidmuller HDCHA16MS1732?
You can click on the BUY or RFQ button to purchase HDCHA16MS1732 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHA16MS1732?
You can download the HDCHA16MS1732 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHA16MS1732?
Weidmuller
