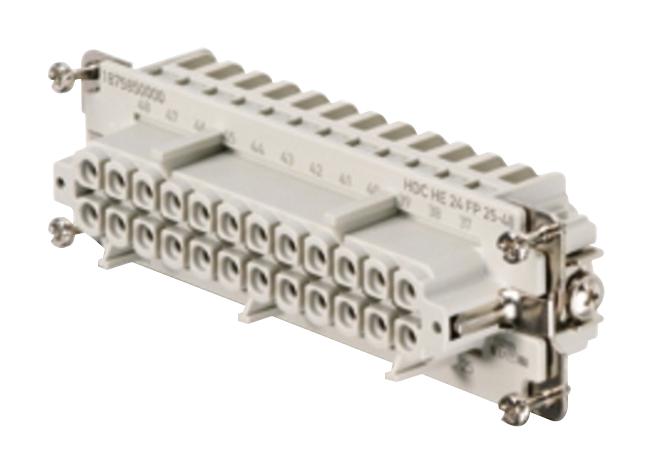

Weidmuller HDCHE24FP2548 24 Pole Female Push-In Connector
The HDC HE 24 FP 25-48 is a female push-in connector designed for quick, tool-free wire insertion, rated at 500 V, 16 A, with 24 poles in a compact size. Made from copper alloy with silver passivation, it features a PC glass-fiber reinforced insulator, UL and railway certification, and a V-0 flammability rating. The connector measures 111mm in length, 34mm in width, and 33.8mm in height, with a maximum temperature of 125°C. It supports 2500 plug cycles and is suitable for industrial wiring applications.
Weidmuller HDCHE24FP2548 24 Pole Female Push-In Connector Specifications:
- Number of poles: 24
- Rated voltage: 500 V (DIN EN 61984), 600 V (UL/CSA)
- Rated current: 16 A
- Temperature range: -55°C to +125°C
- Dimensions: Length 111 mm, Width 34 mm, Height 33.8 mm
- Material: Copper alloy, PC glass-fiber reinforced insulator
- Surface finish: Silver passivated
- Number of plugging cycles: 2500
- Insulation resistance: 10^9 Ω
- Protection class: Pollution severity 3
- Connection: PUSH IN, wire cross-section max. 2.5 mm² (stranded), min. 0.5 mm²
- Screw fixing with M4 screw, tightening torque 1.2–1.5 Nm
- Flammability rating: UL 94 V-0
Buy the Weidmueller Series HDC 24 Pole Female Push-In Connector: HDC HE 24 FP 25-48
Purchase the Weidmueller HDC HE 24 FP 25-48 connector online today and benefit from a high-quality, durable connection solution suitable for industrial applications. Featuring 24 poles, a rated voltage of 500 V, and a current of 16 A, this connector supports quick, tool-free wire insertion through PUSH IN technology. Its robust copper alloy construction with silver passivation ensures long-lasting performance, while UL and railway certifications guarantee safety and compliance. Secure your wiring needs with this reliable, high-capacity connector designed for demanding environments.
Buy Weidmueller HDC HE 24 FP 25-48 now and experience unmatched reliability and performance with quick, tool-free wire insertion for industrial wiring.
Frequently Asked Questions
Where can I buy Weidmuller HDCHE24FP2548?
You can click on the BUY or RFQ button to purchase HDCHE24FP2548 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHE24FP2548?
You can download the HDCHE24FP2548 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHE24FP2548?
Weidmuller
