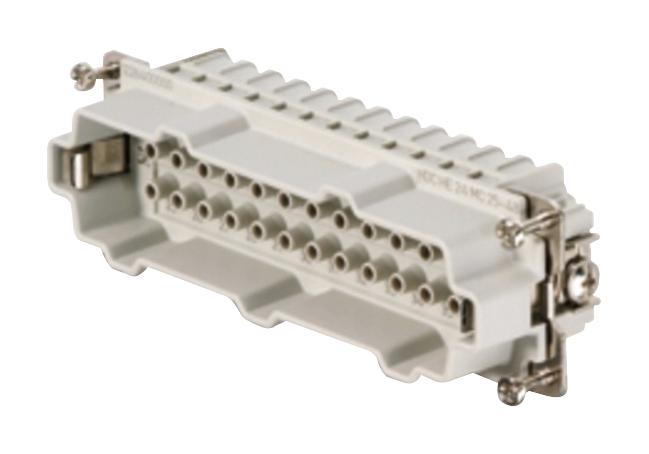

Weidmuller HDCHE24MC2548 Industrial Crimp Connection Module
The HDC HE 24 MC 25-48 is a modular, male crimp connection insert designed for industrial electrical applications. Made from copper alloy with a silver passivated, gold-plated surface finish, it supports a rated voltage of 500 V and a current of 16 A. It accommodates 24 poles with a maximum conductor cross-section of 4mm² and a minimum of 0.5mm². The insert features a compact design with dimensions of 111mm in length, 34mm in width and height, and a weight of 639 grams. It ensures reliable, UL-listed insulation with a temperature limit of 40°C to 125°C and up to 2500 connection cycles, suitable for high-demand environments.
Weidmuller HDCHE24MC2548 Industrial Crimp Connection Module Specifications:
- Dimensions: Length 111mm, Width 34mm, Height 34mm
- Weight: 639 grams
- Rated voltage: 500 V, Rated current: 16 A
- Maximum conductor cross-section: 4mm²
- Minimum conductor cross-section: 0.5mm²
- Material: Copper alloy, Insulating material: PC glass-fibre reinforced
- Temperature Limits: 40°C to 125°C
- Poles: 24
- Surface finish: Silver passivated, gold
- Connection type: Crimp
- Connection cycles: Up to 2500 gold or silver-plated plugging cycles
Buy the Weidmueller Series HDC HDC HE 24 MC 25-48: HDCHE24MC2548
Secure your electrical assembly with the Weidmueller HDCHE24MC2548 modular crimp connection insert. Crafted from durable copper alloy with a corrosion-resistant gold plating, it supports a rated voltage of 500 V AC/DC and carries 16 A of current. Designed with 24 poles for versatile applications, its robust construction ensures up to 2500 connection cycles, making it ideal for demanding industrial environments. Easy to install, UL-listed, and capable of accommodating conductor sizes from 0.5mm² to 4mm², purchase online today for reliable, high-performance wiring solutions.
Buy Weidmueller HDCHE24MC2548 now and experience unmatched reliability and high-quality high-demand crimp connection modules.
