Weidmuller HDCHQ42FC Electrical Insert
The HDC HO. 4/2 FC is a compact, high-performance insert designed for secure electrical connections. It features a robust crimp connection interface, rated for 40 A and 690 V, suitable for plugging into industrial automation and control systems. Constructed from copper alloy with silver passivation and gold-plated contacts, it ensures excellent electrical conductivity, durability, and resistance to environmental influences. Its dimensions are 41.6 mm in length, 22.4 mm in width, and 39.8 mm in height. The design incorporates universal compatibility with Weidmüller interface modules for reliable mounting and connection.
Weidmuller HDCHQ42FC Electrical Insert Specifications:
- Pole count: 6 (4 power + 2 signal contacts)
- Rated current: 40/10 A
- Rated voltage: 690 / 250 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Dimensions: Length 41.6 mm, Width 22.4 mm, Height 39.8 mm
- Material: Copper alloy, PC glass-fiber reinforced insulation
- Surface finish: Silver passivated, gold contacts
- Connection type: Crimp connection for wires up to 6 mm² (AWG 10-16)
- Insulation Resistance: 10⁹ Ω
- Temperature Limit: 40°C to 125°C
- Number of Poles: 6 (4 power, 2 signal)
- Plugging Cycles: 2500 (gold and silver contacts)
- Pollution Severity Level: 3
- Approvals: UL Listed, IEC

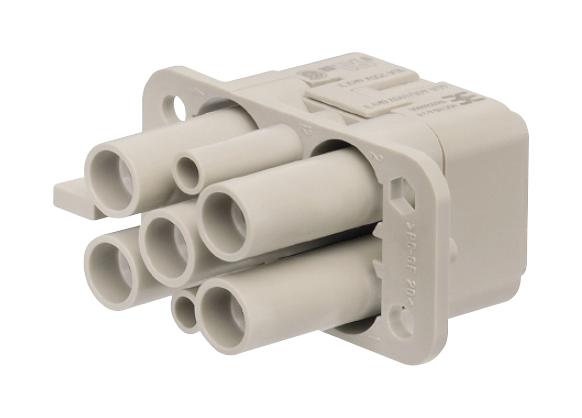

Buy the Buy Weidmüller HDC HO. 4/2 FC Part Number 1003 160000 Online
Secure your automation system with the reliable Weidmüller HDC HO. 4/2 FC insert, designed for high durability and optimal electrical performance. Equipped with crimp contacts, rated at 40 A and 690 V, it features a copper alloy body with silver passivation and gold-plated contacts for superior conductivity and corrosion resistance. Its compact size, at 41.6 mm length, makes it ideal for panels and control cabinets. Easily connect wires from 1.5 mm² to 6 mm² with crimping, ensuring a stable, long-lasting connection for industrial applications.
Order your Weidmüller Series HDC HO. 4/2 FC today and ensure reliable, durable connections in your industrial automation projects.
