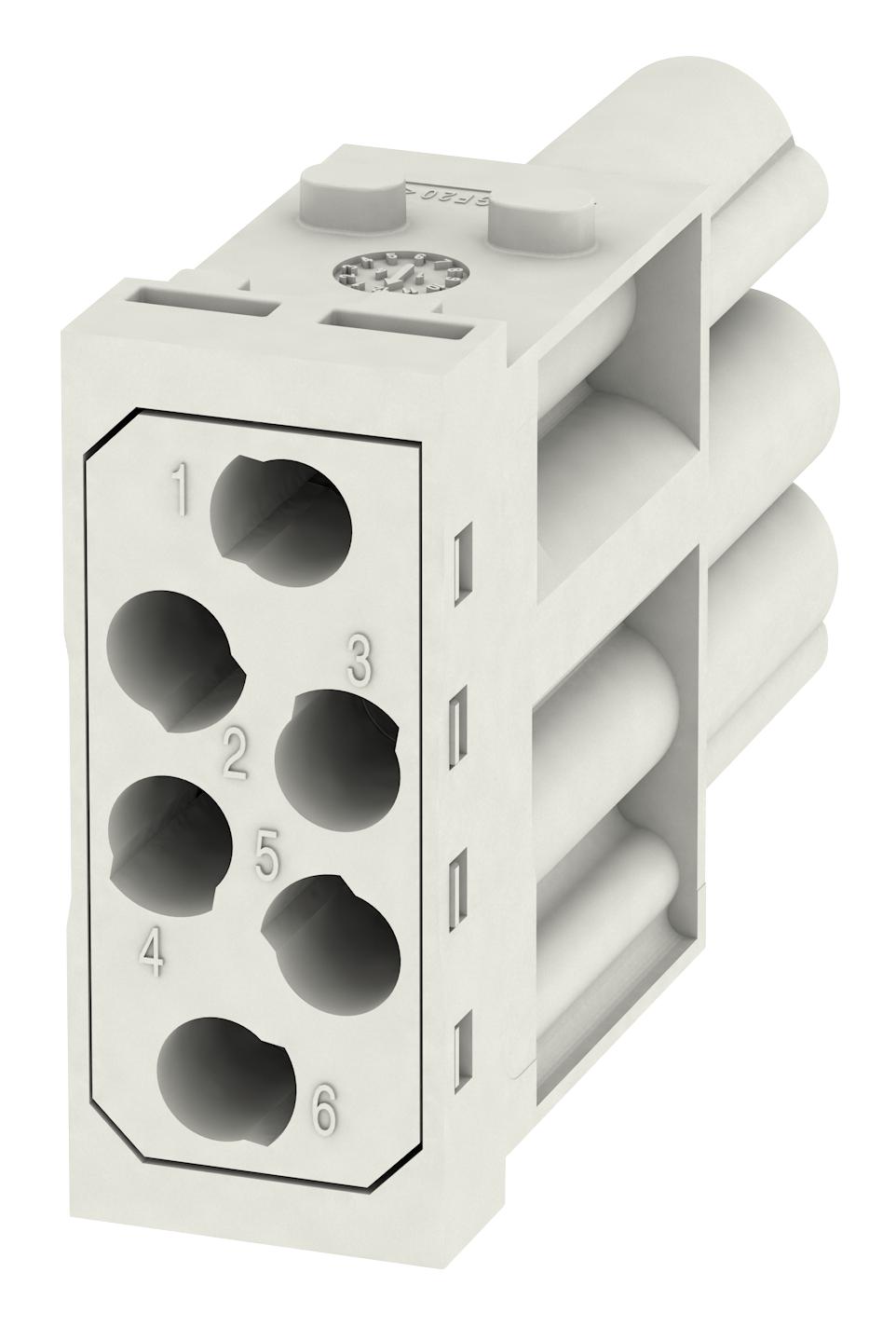

Weidmuller HDCMHE6PMC Modular Connector
The ModuPlug HDC MHE 6P MC is a flexible, compact plug solution designed for space efficiency with four module sizes and a smaller pitch. It features a robust polycarbonate and fiberglass insulation, rated for temperatures between 40°C and 125°C. With six poles, it supports 16A rated current, 830V rated voltage, and withstands up to 8 kV impulse voltage. The plug has a UL V0 flammability rating, 500 plugging cycles, and uses crimp connection for wires ranging from AWG 20 to AWG 12. Suitable for industrial and automation applications, it provides reliable plug-in slots and is certified to meet international standards.
Weidmuller HDCMHE6PMC Modular Connector Specifications:
- Number of poles: 6
- Rated current: 16A
- Rated voltage: 830V, UL/CSA 600V
- Impulse voltage: 8 kV
- Temperature Range: 40°C to 125°C
- Flammability Rating: UL 94 V0
- Material: Polycarbonate with glass fiber reinforcement
- Connection Type: Crimp connection via screw terminal
- Wire Range: AWG 20 to AWG 12
- Maximum Conductor Cross-Section: 4 mm²
- Minimum Conductor Cross-Section: 0.5 mm²
- Number of plugging cycles: 500
- Pollution severity: 3
Buy the Buy Weidmueller HDC MHE 6P MC Part Number 1505650000 Online
Secure your industrial wiring needs with the Weidmueller ModuPlug HDC MHE 6P MC. Designed for durability, this six-pole plug supports 16A current, rated for 830V, and operates effectively between 40°C and 125°C. Its compact design saves space and features UL V0 flammability safety. With 500 plug-in cycles, crimp connection terminals, and a range of wire sizes from AWG 20 to AWG 12, it ensures durable, reliable performance for automation and control applications. Order online today for fast, trusted delivery.
Get Weidmueller HDC MHE 6P MC today—engineered for space-efficient and reliable industrial connections.
Frequently Asked Questions
Where can I buy Weidmuller HDCMHE6PMC?
You can click on the BUY or RFQ button to purchase HDCMHE6PMC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCMHE6PMC?
You can download the HDCMHE6PMC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCMHE6PMC?
Weidmuller
