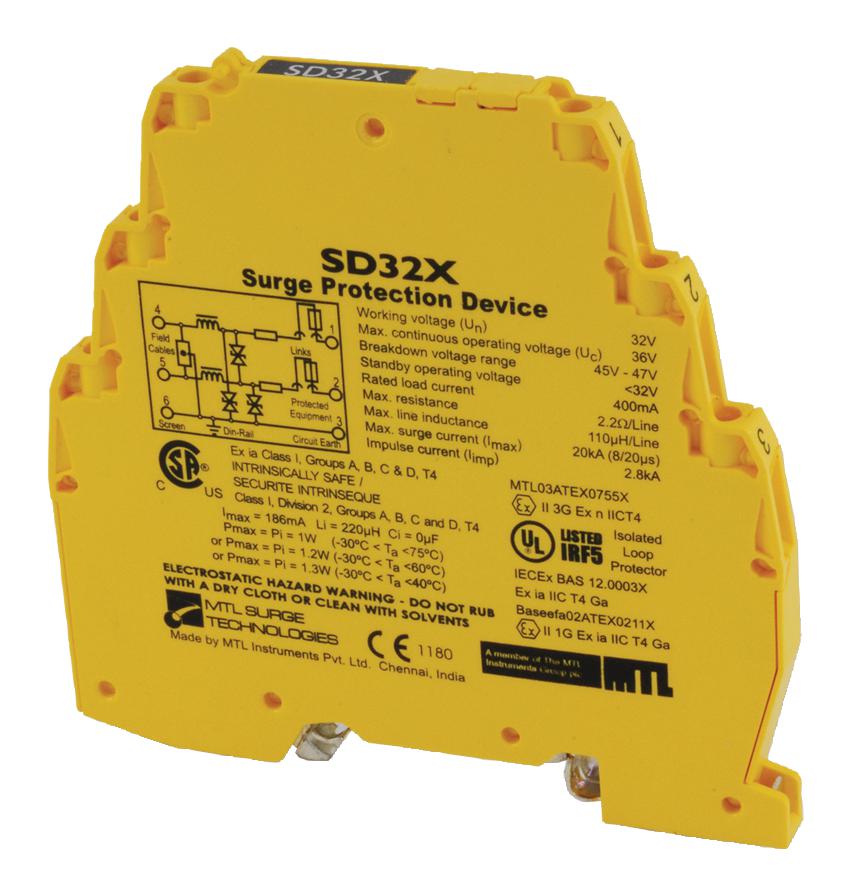

WEIDMULLER SD32X Surge Protection Device
This user-friendly surge protective device safeguards electronic equipment and systems against voltage surges on signal and I/O cabling. It features high-density packaging, versatile application, reliable hybrid circuitry, simple DIN rail mounting, and optional loop disconnect. Ideal for protecting digital outputs, alarms, LEDs, solenoid valves, and other electronic components, the device offers an ultra-slim design, multi-stage hybrid protection circuitry, low resistance, and suitability for high-bandwidth applications.
WEIDMULLER SD32X Surge Protection Device Specifications:
- Protection: Full hybrid line to line, each line to screen/ground
- Max discharge surge current: 20kA (8/208) (6.5kA for SD150X/SD275X)
- Nominal discharge surge current: 3kA (8/208)
- Lightning impulse current: 2.8kA (10/350ps), 1.0kA (8/20ps) for SD150X/SD275X
- Response time: <1ns
- RTD resistance range: 10 to 1500Ω
- Ambient temperature: -40°C to +80°C; -40°F to 176°F
- Power rating for IS applications: P1=1.0W, P2=1.2W, P3=1.3W
- Humidity: 5 to 95% RH (non-condensing)
- Dimensions: approximately 70mm length (2.75 inches), compatible with standard DIN rail
- Enclosure options: Weatherproof enclosures available
- Certifications: ATEX, IECEx, UL, CSA, EN 61643-21
- Mounting: DIN rail with optional accessories, earthing compatible with DIN rail terminal
- Product range covers voltage ratings up to 250V AC, suitable for process control, communication, and hazardous areas
Buy the Eaton Surge Protection Series SD32X: Protects Signal and I/O Cabling
Secure your electronic systems by ordering the Eaton Surge Protection Device online today. Its compact, versatile design and reliable hybrid circuitry ensure maximum safety against voltage surges on signal and I/O lines. Easy DIN rail mounting, optional loop disconnect, and high bandwidth make it an ideal choice for process automation, communication links, and hazardous area applications. Protect sensitive equipment with this proven, durable surge protector for peace of mind and uninterrupted operation.
Buy Eaton SD32X now and experience unmatched reliability and performance for electronic and communication system surge protection.
