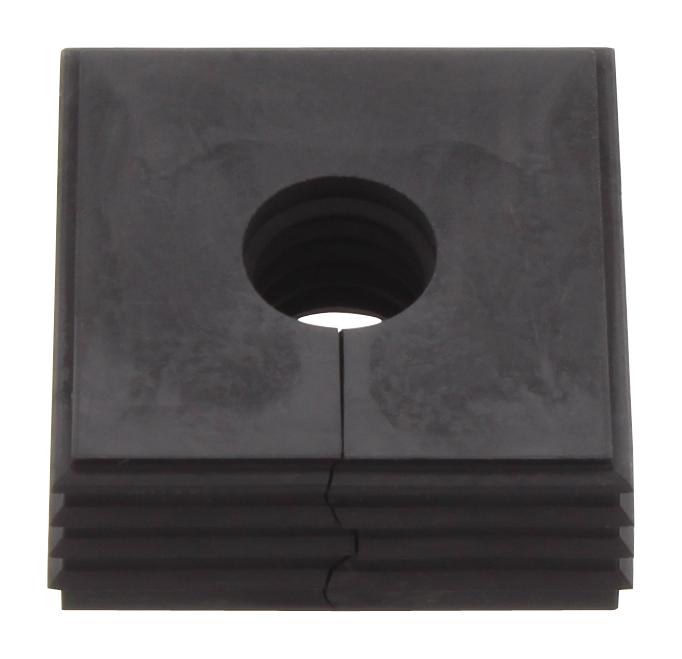

WEIDMULLER 2583880000 Cable Grommet
A conically shaped grommet designed for easy installation, it seals gaps and provides strain relief according to DIN EN 62444 standards. The slotted, wave-cut design is suitable for preassembled cables and allows for straightforward pressing into place from inside the frame inlay. When combined with the frame inlay, it achieves an IP66 protection rating. Made from black TPE, this grommet is halogen-free, silicone-free, UV stabilized, and meets UL94 HB flammability ratings. It features a large 1-hole clamping capacity of 14mm to 15mm and operates within a temperature range of –40°C to +120°C (static).
WEIDMULLER 2583880000 Cable Grommet Specifications:
- Material: TPE, halogen-free, silicone-free, UV stabilized
- Color: Black RAL 9005
- Flammability: UL94 HB, V0 possible
- Temperature Range: –40°C to +120°C (static)
- Degree of Protection: IP66
- Clamping Range: 14mm to 15mm
- Design: Conical, wave-cut, slotted
- Operating Environment: Suitable for pre-assembled cables
- Installation: Pressed into frame inlay from inside
- Sealing Effectiveness: Reliable seal with strain relief
- Applications: Cable entry, strain relief, acoustic feedback
- Compatibility: IP66, NEMA 4X and 12 standards
Buy the Weidmuller Series Conical Grommet: 2583880000
Purchase the Weidmuller conical cable grommet 2583880000 online today to ensure reliable cable sealing, strain relief, and easy installation. Made from durable black TPE, these grommets are halogen-free, UV stabilized, and meet industry standards for flammability. Ideal for applications requiring IP66 sealing, they accommodate clamp ranges of 14mm to 15mm, providing protection against dust, water, and mechanical stress. Whether for industrial automation, control cabinets, or machinery, buy now for fast delivery and enhanced cable management.
Buy Weidmuller conical cable grommet 2583880000 now and enjoy secure sealing, easy installation, and high strain relief for your cable management needs.
