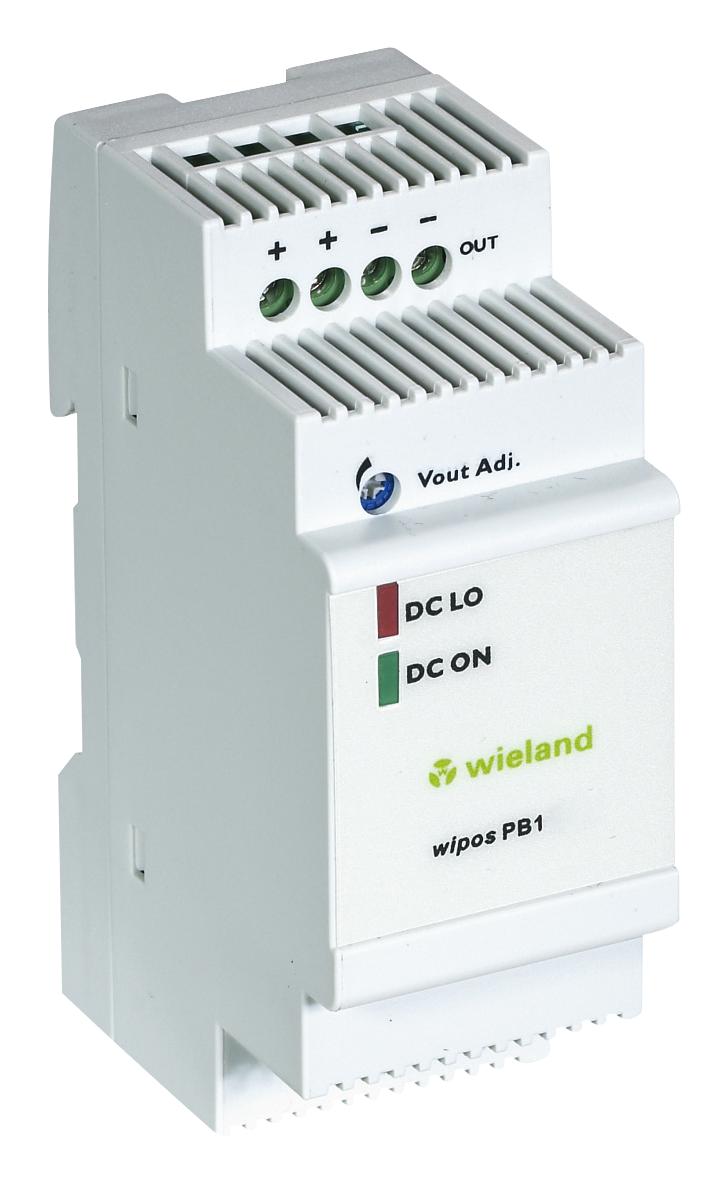

WIELAND ELECTRIC 8100063220 Switched Mode Power Supply
The Wieland Electric WIPOS PB1 81.000.6322.0 is a compact and reliable switched-mode power supply suitable for a variety of industrial applications. It delivers a stable 12V DC output at 2A, making it ideal for powering control circuits, sensors, and other low-voltage devices. The unit features a wide input voltage range (90-264V AC or 120-375V DC), sustained short-circuit protection, and DIN rail mounting for easy integration into electrical panels. Its robust design and comprehensive certifications ensure reliable performance in demanding environments.
WIELAND ELECTRIC 8100063220 Switched Mode Power Supply Specifications:
- Connection type: Screw connection
- Number of phases: Single phase power supply
- Modular version: Yes
- Rail mounting possible: Yes
- Housing material: Plastic
- Operating temperature min: -40 °C
- Operating temperature max: 71 °C
- Degree of protection (IP): IP20
- Pollution degree: 2
- Function display: DC OK LED green (U(o) 9...10.8V)
- function display DC Low: DC LOW LED red (U(o) < 9...10.8V)
- Short-circuit protective device: Current limiting (hiccup mode)
- temperature coefficient: ±0.03%/K
- ripple and noise: < 0.05 V
- hold time 115V AC: > 20 ms
- hold time 230V AC: > 100 ms
- isolating voltage Output DC: 4242 V
- cohesive resistance (In-/Output): 100 MOhm
- Derating: 61°C...71°C: 2.5%/K
- cooling: free convection
- MTBF: 798.000h
- Connector cross section (input): min. 0,5mm² (AWG24) max. 2,5mm² (AWG12)
- Connector cross section (output): min. 0,5mm² (AWG24) max. 2,5mm² (AWG12)
- Wire strip length: 7 mm
- Permissible torque max: 0.6 Nm
- Control Adj: trimming potentiometer for fine-tuning of U(out)
- CE-Norm: EN61000-6-3, EN 55022 Class B,EN61000-3-2, EN61000-3-3,EN61000-6-2,EN55024, EN61000-4-2, Level 4,EN61000-4-3 Level 3,EN61000-4-4 Level 4,EN61000-4-5 L-N Level 3, L/N-FG Level 4,EN61000-4-6 Level 3, EN61000-4-8 Level 4,EN61000-4-11, ENV 50204 Level 2,EN61204-3
- Approval cULus: UL 508 Listed, UL60950-1 Recognized
- Number of +: 2
- Number of -: 2
- Further terminals: L, N
- Power output: 24 W
- Output voltage stabilized: Yes
- Output voltage: 12 V
- Output current: 2 A
- Input fuse: T2A / 250V (intern)
- input protection: Varistor (voltage-sensitive resistor)
- Min. input voltage: 90 V
- Max. input voltage: 264 V
- Rated frequency min: 47 Hz
- Rated frequency max: 63 Hz
- Max. starting current: 40 A
- Depth: 56.5 mm
- Width: 35 mm
- Height: 91 mm
- Mounting Distance horizontal: 25 mm
- Mounting Distance vertical: 25 mm
- Weight: 130 g
