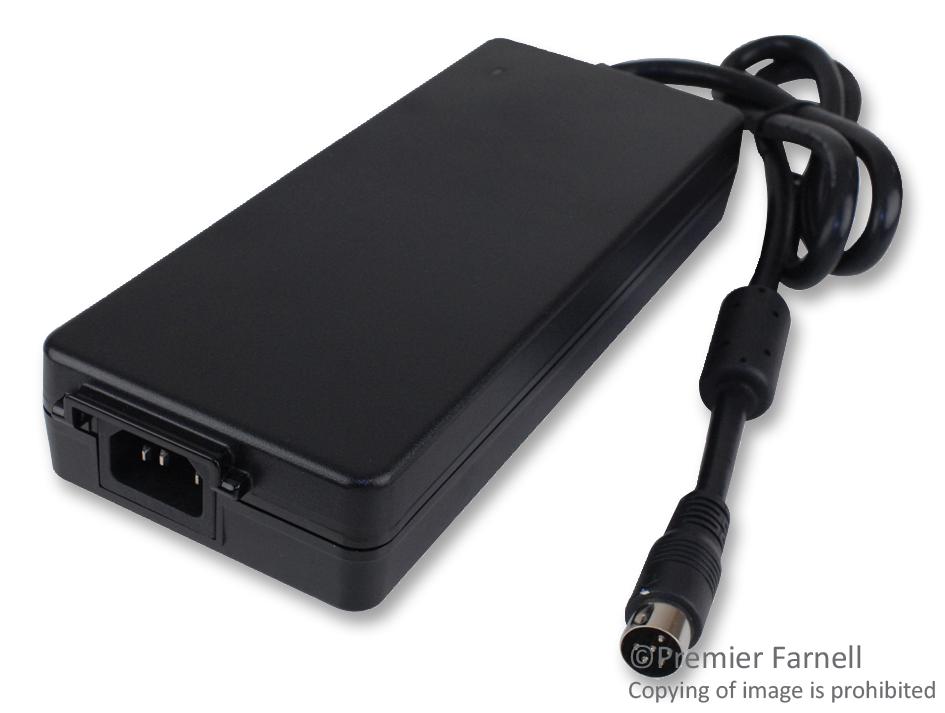

XP POWER AHM250PS24T medical power supply
The AHM250-T is a high-power 250W AC to DC power supply engineered for medical equipment, offering medical safety certifications including EN60601-1 and UL. It features excellent efficiency, exceeding Energy Efficiency Level V standards and meeting CEC 2008 and EISA 2007 criteria, with a no-load power consumption below 0.5W. The device supports input voltages from 80-264 VAC, operates within a temperature range of 0°C to +60°C, and has protective features like overvoltage, overtemperature, and short circuit protection. Compatible with various output voltages, it is ideal for demanding medical applications requiring robustness and reliability.
XP POWER AHM250PS24T medical power supply Specifications:
- Power Output: 250W
- Input Voltage: 80-264 VAC
- Input Frequency: 47-63 Hz
- Efficiency: >92% typical
- No Load Input Power: <0.5W
- Output Voltage Options: 12V, 15V, 19V, 24V, 48V, with various models
- Protection Features: Overvoltage, overtemperature, short circuit protection, auto recovery
- Isolation: 4000 VAC In to Out, 2 x MOPP; 1500 VAC In to Earth, 1 x MOPP
- Operating Temperature: 0°C to +60°C, derating above 40°C
- Cooling: Convection-cool
- Size: Approximate dimensions 1.417 inches (36.0 mm) length, 0.79 inches (20.0 mm) width
- Weight: Around 1.4 lbs (620 g)
- Standards & Certifications: EN60601-1, UL60601-1, EN61000 series EMC, IEC 60601-1-2
Buy the ACME AHM250PS24T – Reliable Medical Power Supply for Industrial Applications
Purchase the ACME AHM250PS24T power supply online to ensure your medical equipment operates reliably with certified safety features and high efficiency. Designed for demanding healthcare environments, this 250W power supply offers low no-load power consumption, multiple output options, and comprehensive protection features, ensuring safety and durability. Its convection cooling and robust build make it ideal for medical devices requiring stable power, compliance with medical safety standards, and long-term dependability. Order now for fast delivery and trusted performance.
Get ACME AHM250PS24T today—built for medical safety, high performance, and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER AHM250PS24T?
You can click on the BUY or RFQ button to purchase AHM250PS24T from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AHM250PS24T?
You can download the AHM250PS24T datasheet or visit the XP POWER website for support.
Who is the manufacturer of AHM250PS24T?
XP POWER
