XP POWER JTK3024D12 DC-DC Power Module
This compact power module provides reliable 30-watt DC-DC conversion in a 1-inch by 1-inch footprint, supporting single and dual outputs. It operates over a wide input voltage range of 18V to 75V, with high efficiency up to 91%, and features 1600V DC isolation, output trimming of ±10%, and remote On/Off control. Designed for harsh environments, it withstands temperatures from -40°C to +100°C and includes optional heatsinks. Its robust design ensures optimal performance in industrial and automation applications requiring efficient, high-density power solutions.
XP POWER JTK3024D12 DC-DC Power Module Specifications:
- Power: 30 Watts
- Dimensions: 1.0 x 1.0 x 0.43 inches (25.4 x 25.0 x 10.9 mm)
- Input Voltage Range: 18V to 75V DC
- Input Surge Voltage: 100V DC for 100 ms (48V models)
- Output Voltage: 3.3V, 5V, 12V, or adjustable ±10%
- Efficiency: Up to 91%
- Isolation: Input to Output 1600V DC
- Operating Temperature: -40°C to +100°C
- Ripple & Noise: 75/60 mV pk-pk
- Remote On/Off Control: Yes, turns on/off via external signal
- MTBF: 370,000 hours
- Certifications: UL, IEC60950-1, IEC62368-1
- Case Material: Copper with UL94V-0 epoxy potting

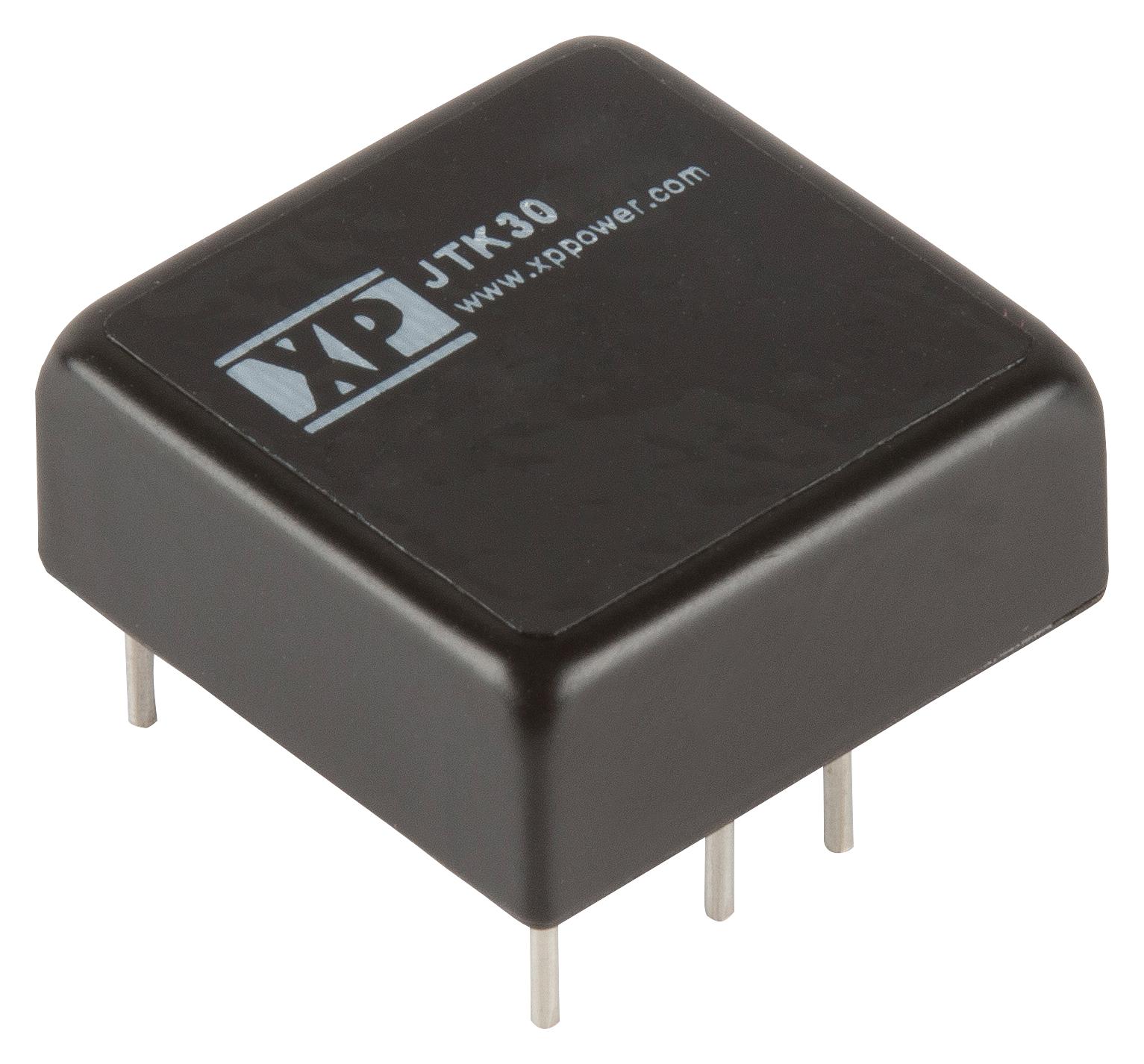

Buy the XP Power Series DC-DC Converter: JTK30D12
Purchase the XP Power JTK30D12 DC-DC power module online today and benefit from a compact, high-density design with 30 Watts of power. Its wide input voltage range, up to 75V, and 1600V DC isolation ensure reliable operation across demanding environments. Featuring ±10% output trim, remote On/Off, and efficiencies reaching 91%, this module is ideal for industrial automation, control systems, and power management applications. Enjoy fast delivery, secure checkout, and technical support when buying online now.
Buy XP Power JTK30D12 now and experience unmatched reliability and performance in high-efficiency power conversion.
Frequently Asked Questions
Where can I buy XP POWER JTK3024D12?
You can click on the BUY or RFQ button to purchase JTK3024D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTK3024D12?
You can download the JTK3024D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTK3024D12?
XP POWER
