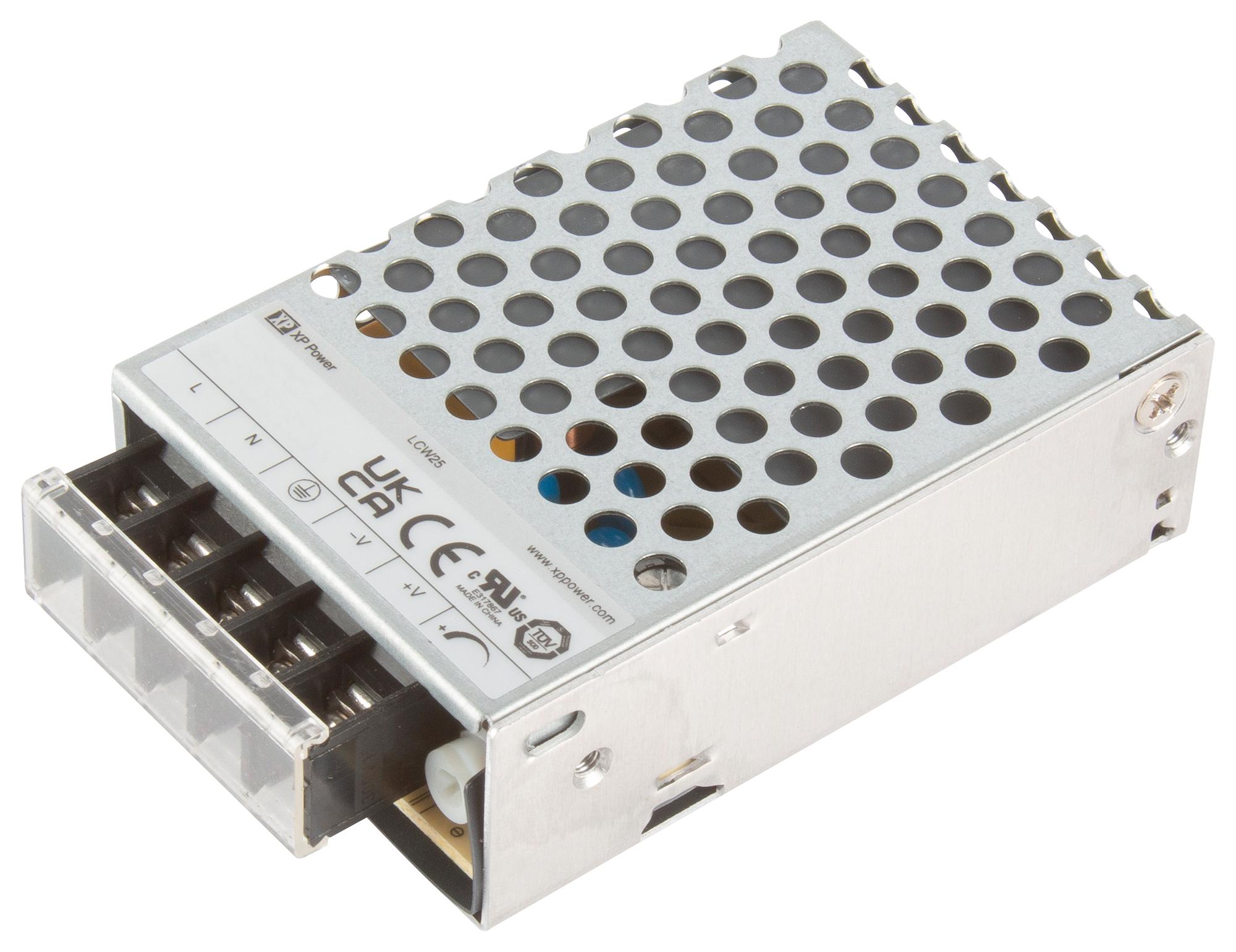

XP POWER LCW25US24 Power Supply
The LCW25 series 25W regulated AC to DC power supplies are convection-cooled units designed for industrial and electronic applications. They feature a wide input voltage range of 85-305VAC, adjustable output voltage, low standby power, and comprehensive protection including short circuit, overcurrent, overload, and overvoltage safeguards. Certified by UL, EN, CE, and UKCA, these power supplies are suitable for auxiliary power, security systems, lighting control, smart home and office systems, as well as ticketing and vending solutions. They come with an integrated connector cover, conformal coating option, and operate efficiently at 87% with a switching frequency of 65kHz. The compact aluminum chassis with vented steel cover measures 3.70 inches by 2.17 inches by 0.98 inches (94 x 55 x 25 mm), and feature a temperature operating range from -30°C to +70°C. Each unit includes a 3-year warranty.
XP POWER LCW25US24 Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 25W
- Output Voltage Adjustment: +10%
- Efficiency: up to 87%
- Operating Temperature: -30°C to +70°C
- Dimensions: 3.70 inches x 2.17 inches x 0.98 inches (94 x 55 x 25 mm)
- Switching Frequency: 65 kHz
- Protection: Short circuit, overvoltage, overload
- Certifications: UL, EN, CE, UKCA
- Enclosure: Aluminum chassis, vented steel cover
- Operating Altitude: 5000 m
- Conformal Coating: optional including connector
- Temperature Coefficient: ±0.03
- Isolation: Input to Output 4000Vac
- Earth Leakage Current: 0.5mA
- Input Frequency: 50/60Hz
- Temperature Range (Storage): -40°C to +85°C
Buy the XP Power Series LCW25 25W Convection Power Supply: LCW25US24
Purchase the XP Power Series LCW25US24 25W convection-cooled power supply online today to ensure your industrial systems operate reliably and efficiently. This compact, certified power supply offers a wide input voltage range of 85-305VAC, high efficiency of up to 87%, and comprehensive protections including short circuit, overvoltage, overload, and overcurrent safeguards. Its rugged aluminum chassis with vented steel cover measures only 3.70 x 2.17 x 0.98 inches, making it ideal for space-constrained applications. Designed for operating temperatures from -30°C to +70°C, it guarantees durability in demanding environments. Plus, with a 3-year warranty, you can trust its long-term performance for security, lighting, vending, and smart home systems.
Order your XP Power Series LCW25US24 25W convection-cooled power supply today and ensure reliable power for your industrial and electronics projects.
Frequently Asked Questions
Where can I buy XP POWER LCW25US24?
You can click on the BUY or RFQ button to purchase LCW25US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW25US24?
You can download the LCW25US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW25US24?
XP POWER
