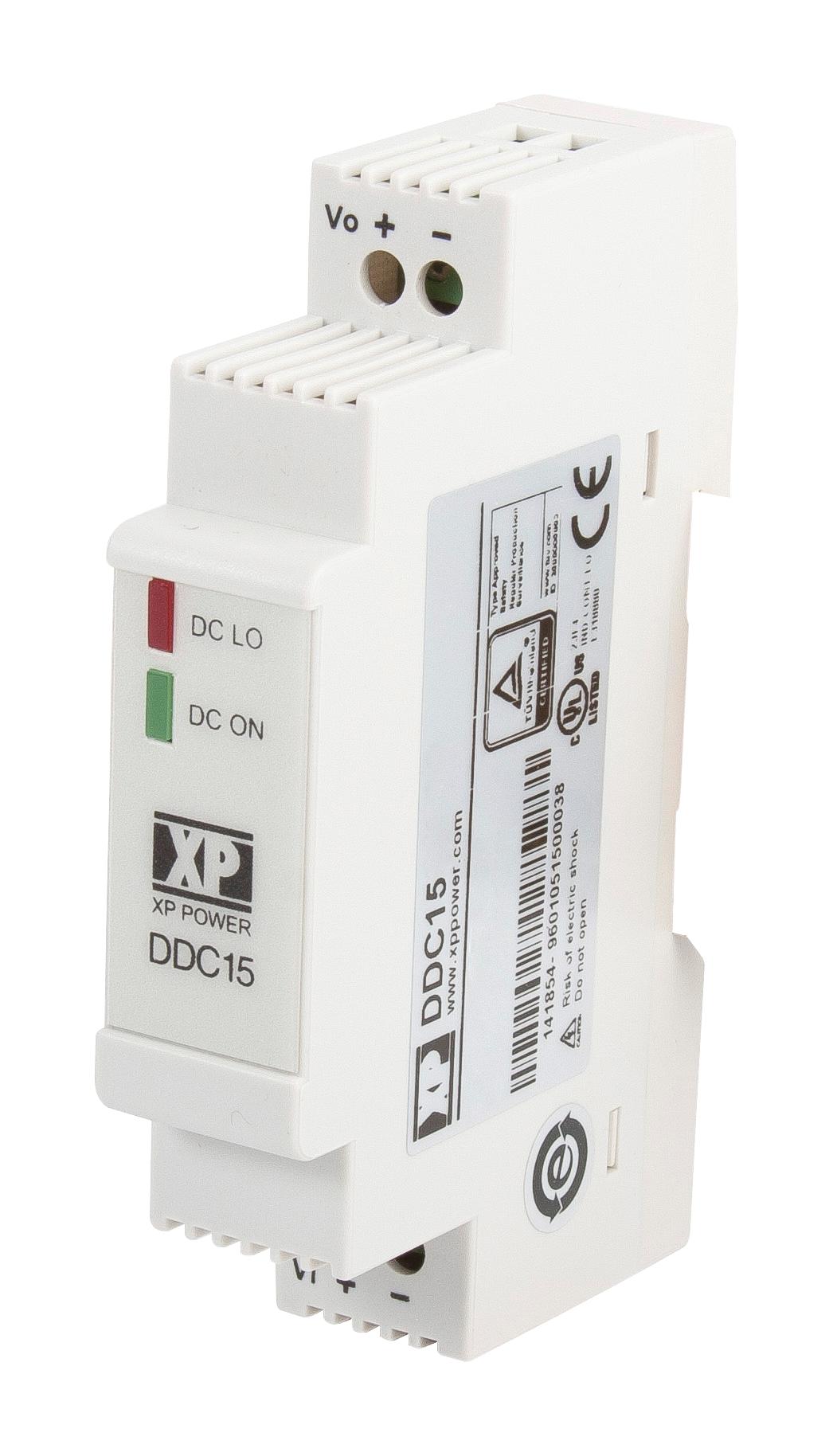

XP POWER DDC1524S09 DC/DC Converter Module
The DDC15 is a DIN rail mount DC/DC converter module providing versatile voltage options suitable for power management systems. It features a wide 4:1 input voltage range from 9V to 36V, with output voltages adjustable between 3.3V and 24V DC. Designed for reliable operation in industrial environments, it offers 1500V DC isolation, low profile form factor, and operates from -40°C to 70°C. The converter ensures noise immunity, complies with Class B emission standards, and boasts an efficiency of up to 85%, making it ideal for battery-backed and other controlled power applications.
XP POWER DDC1524S09 DC/DC Converter Module Specifications:
- Input Voltage Range: 9V to 36V DC
- Output Voltage Range: 3.3V to 24V DC
- Output Power: Up to 15 Watts
- Output Current: 0.76 A to 2.1 A depending on model
- Maximum Input Surge: 40 VDC
- Efficiency: Up to 85%
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +70°C
- Dimensions: 1.77 x 3.58 x 2.02 inches (45.0 x 91.0 x 51.5 mm)
- Input Current: varies by model, max 350A at 3.3V, 125A at 12V, 63A at 24V
- Switching Frequency: 150-300 kHz
- Vibration & Shock: Meets EN60068 standards
- Enclosure: Low profile, DIN rail mount
- Compliance: UL, IEC 61000-4 series immunity, EN55032 Class B emission
Buy the XP Power DDC1524S09 – Reliable Power Supply Converter for Industrial Applications
Purchase the XP Power DDC1524S09 today to enhance your power system with a high-efficiency, DIN rail mount DC/DC converter. This module provides an adjustable output between 3.3V and 24V, operates reliably from -40°C to 70°C, and offers 1500V DC isolation, making it suitable for industrial, battery-backed, and noise-sensitive applications. With a compact low profile design and compliance with safety and emission standards, it ensures optimal power management in demanding environments. Order online now for fast, secure delivery and expert support.
Buy XP Power DDC1524S09 now and experience unmatched reliability, high efficiency, and flexible voltage options for industrial and battery-backed systems.
Frequently Asked Questions
Where can I buy XP POWER DDC1524S09?
You can click on the BUY or RFQ button to purchase DDC1524S09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DDC1524S09?
You can download the DDC1524S09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DDC1524S09?
XP POWER
