XP POWER IES0124S15 DC-DC Power Supply
The IES01 series single output DC-DC power supply is an ideal solution for isolating voltage rails in distributed power supply architectures, such as those used in analogue, digital, data, and relay circuits. It features an unregulated 15V single output with a 24V input voltage, an input range of ±10%, and is housed in an SMD8 DIP package with industry-standard pinouts. The power supply includes continuous short circuit protection, safety approvals under UL62368-1, and operates across a wide temperature range from -40°C to +105°C, maintaining full load performance up to +100°C. It comes with a 3-year warranty.
XP POWER IES0124S15 DC-DC Power Supply Specifications:
- Input Voltage: 24V (±10%)
- Input Range: 21.6V to 26.4V
- Output Voltage: 15V
- Output Current: 8mA to 241mA depending on model
- Isolation: 1.5kVDC, optional 3kVDC
- Efficiency: Up to 83%
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -55°C to +125°C
- Dimensions: 0.52" x 0.335" x 0.285" (13.2 x 8.5 x 7.25 mm)
- Pinout: Industry-standard DIP8, with 1 Vin, 2 +Vin, 4 -Vout, 5 +Vout, 8 No Connection
- Safety Approvals: UL62368-1, CE, UKCA
- Power Density: 208 W/in³
- Isolation Resistance: ≥100 MΩ at 500VDC
- Power Rating: up to 2.4 W
- Cooling: Natural convection
- Case Material: Black flame-retardant UL94V-0 plastic
- Soldering Profile: Peak temp <245°C, duration <60s at 217°C
- MTBF: 3600 hours (MIL-HDBK-217F, 25°C)

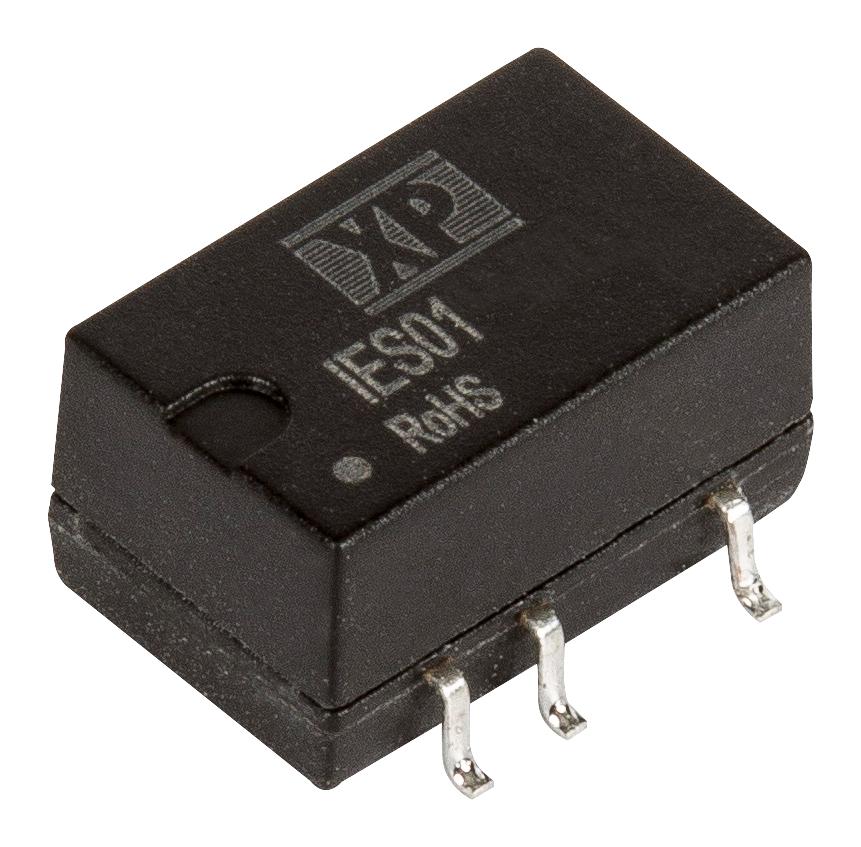

Buy the XP Power Series IESO1 15V DC-DC Power Supply: IES0124S15
Purchase the XP Power IES0124S15 now to ensure your power architecture benefits from high efficiency, broad temperature tolerance, and proven safety standards. This compact, unregulated 15V single output power supply offers robust short circuit protection, industry-standard pinout, and UL62368-1 safety approval. Its wide input voltage range ensures compatibility with various applications, while the full load operation up to 100°C makes it suitable for demanding environments. Order online today and secure dependable power for your critical systems.
Buy XP Power IES0124S15 now and experience unmatched reliability and performance in your distributed power systems.
Frequently Asked Questions
Where can I buy XP POWER IES0124S15?
You can click on the BUY or RFQ button to purchase IES0124S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IES0124S15?
You can download the IES0124S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IES0124S15?
XP POWER
