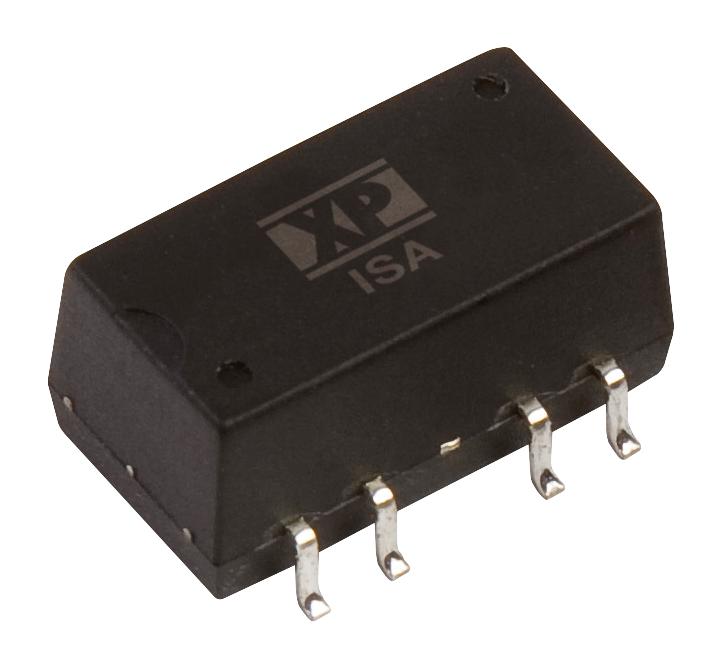

XP POWER ISA2415 DC-DC Converter
The ISA Series DC-DC Converter offers reliable power conversion with dual outputs in a compact SMD package, supporting operating temperatures from -40°C to +105°C. It provides up to 1 watt of power and features industry standard pinout for easy integration. The converter delivers 1500 VDC isolation with an optional 3000 VDC version, ensuring safe electrical separation in various applications. Its robust architecture includes high efficiency, low ripple, and short circuit protection, making it suitable for industrial, automation, and control systems requiring stable, isolated power supplies.
XP POWER ISA2415 DC-DC Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 2.97-3.63 VDC to 21.6-26.4 VDC depending on model
- Output Voltage: 4.5-5.5 V or 10.8-132 V depending on model
- Isolation Voltage: 1500 VDC, optional 3000 VDC with suffix -H
- Operating Temperature: -40°C to +105°C
- Dimensions: 0.600 x 0.440 x 0.285 inches (15.24 x 11.20 x 7.25 mm)
- Switching Frequency: 50 to 300 kHz
- Efficiency: Up to 80% depending on load and model
- Isolation Resistance: 10^9 ohms at 500VDC
- Temperature Coefficient: 0.02 %/°C
- Case Material: SMD package
- Weight: 1.8 grams
- Input and output ripple noise: 60 mV pk-pk
- Start-up Delay: 2 ms
- Relative humidity: up to 95% RH non-condensing
Buy the XP Power Series ISA DC-DC Converter: ISA2415
Purchase the XP Power ISA2415 DC-DC Converter online today and benefit from its compact size, dual outputs, and high isolation voltage of 1500 VDC. Engineered for industrial environments, this converter operates reliably from -40°C to +105°C, delivering consistent power with efficiencies reaching up to 80%. Its industry-standard pinout allows easy integration into your existing system, while its robust design and short circuit protection ensure durability and safety. Ideal for automation, control systems, and other demanding applications, order now for fast delivery and secure online shopping.
Buy XP Power ISA2415 now and experience unmatched reliability, high efficiency, and durable electrical isolation for mission-critical applications.
