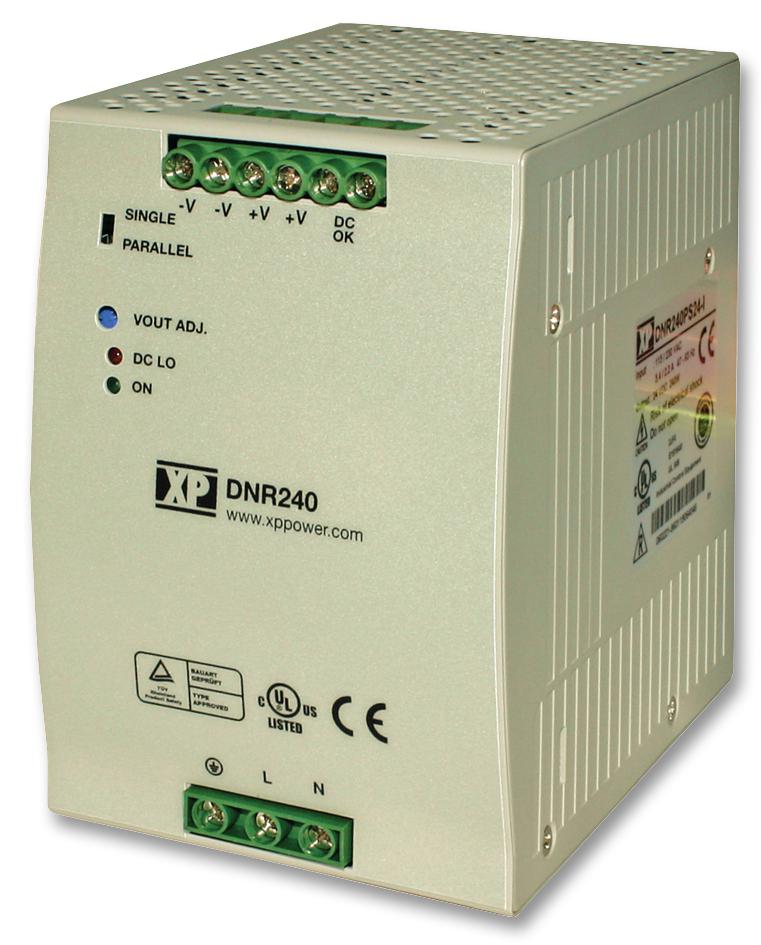

XP POWER DNR240PS48I Industrial Power Supply
The DNR240PS48I is a high-efficiency power supply designed for industrial automation and control applications. Offering up to 90% efficiency, it features wide input voltage ranges, adjustable output voltage trim, and full power operation from -40°C to +60°C. It supports parallel operation with redundancy modules for enhanced reliability and includes optional detachable connectors for flexible installation. Certified for safety and EMI standards, this power supply ensures stable voltage output with minimal ripple and noise, making it ideal for demanding industrial environments.
XP POWER DNR240PS48I Industrial Power Supply Specifications:
- Input Voltage: 90-264 VAC, 120-375 VDC
- Input Frequency: 47-63 Hz
- Input Current: 24/48 A at 115/230 VAC
- Inrush Current: See tables
- Power Factor: 0.7 typical
- Output Voltage: 48V
- Output Voltage Trim: 45.0-55.0 V
- Initial Set Accuracy: 1%
- Output Current: 30/60 A at 115/230 VAC
- Ripple & Noise: 100 mV pk-pk (DNR240PS48I)
- Efficiency: Up to 90%
- Isolation: 3000 VAC input to output
- Operating Temperature: -40°C to +70°C, derating from +60°C at 2.5%/°C
- Cooling: Convection, 25mm clearance
- Dimensions: Approximately 5.59 x 4.92 x 1.97 inches (142 x 125 x 50 mm)
- Weight: Approx. 3.0 lbs (1360 g)
- Safety Certifications: UL, CE, EN55022 Class B
Buy the Power Supply Series DNR: Industrial 48V Power Supply Model DNR240PS48I
Get the Power Supply Series DNR DNR240PS48I online today for reliable power delivery in industrial applications. Designed for stability and efficiency, it features adjustable output voltage, wide temperature range, compact size, and optional detachable connectors. Perfect for automation systems, control cabinets, and industrial machinery, this power supply ensures minimal ripple, high efficiency, and comprehensive safety certifications. Easy to install and maintain, it offers excellent performance in demanding environments, making it your go-to solution for reliable power management.
Buy Power Supply Series DNR DNR240PS48I now and experience unmatched reliability and performance in industrial control environments.
