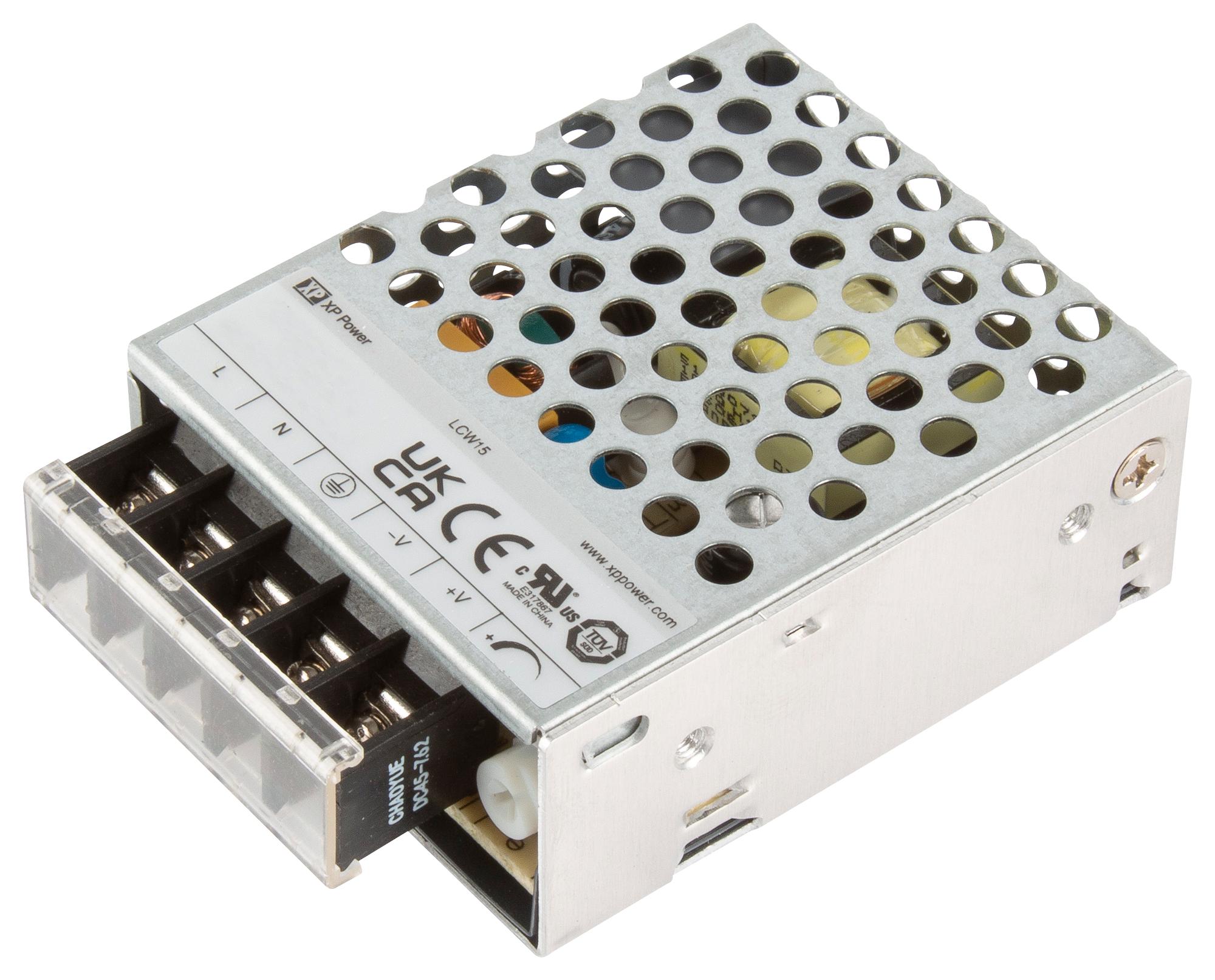

XP POWER LCW15US15 Industrial Power Supply
The LCW15 series regulated AC to DC power supplies are convection-cooled units providing 15W of power suitable for industrial electronics and automation applications. They support a wide AC input voltage range from 85 to 305VAC and include features such as output voltage adjustment, low standby power consumption, and protection against short circuits, overcurrent, overload, and overvoltage. These power supplies are certified by UL62368-1, EN62368-1, CE, and UKCA, and are approved for ITE and industrial use. They offer an efficiency of 82%, operate with a switching frequency of 65kHz, and include options like conformal coating. Additional features include an integrated connector cover, compact dimensions of approximately 78 x 55 x 25mm, a rugged aluminum chassis with vented galvanized steel cover, and an operating temperature range from -30°C to +70°C. The units come with a three-year warranty.
XP POWER LCW15US15 Industrial Power Supply Specifications:
- Input Voltage: 85-305VAC
- Output Power: 15W
- Output Voltage Range: 3.3V to 48VDC (dependent on model)
- Efficiency: Up to 83%
- Switching Frequency: 65kHz
- Dimensions: 2.56 x 2.17 x 0.98 inches (65.0 x 55.0 x 25.0 mm)
- Operating Temperature: -30°C to +70°C
- Protection Features: Short circuit, overvoltage, overload
- Certifications: UL62368-1, EN62368-1, CE, UKCA
- Construction: Aluminum chassis, vented galvanised steel cover
- Input Protection: Internal fuse
- Conformal Coating: Optional, suffix -E
- Reliability: 3-year warranty
- Protection Class: Class I
- Isolation: 4000V input to output
Buy the Buy XP Power LCW15US15 Part Number LCW15US15 Online
Purchase the XP Power LCW15US15 power supply online today for your industrial automation and electronics systems. Designed for durability and efficiency, it features adjustable output voltage, protection against short circuits, overload, and overvoltage, as well as certification for safety and quality. Compact yet powerful, it operates reliably in harsh environments from -30°C to +70°C. With conformal coating options and a robust aluminum chassis, this 15W power supply ensures consistent performance and safety for a wide range of industrial applications. Buy now to get fast delivery and expert support.
Buy XP Power LCW15US15 now and experience unmatched reliability and performance in industrial electronics with high efficiency convection-cooled power supply.
Frequently Asked Questions
Where can I buy XP POWER LCW15US15?
You can click on the BUY or RFQ button to purchase LCW15US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW15US15?
You can download the LCW15US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW15US15?
XP POWER
