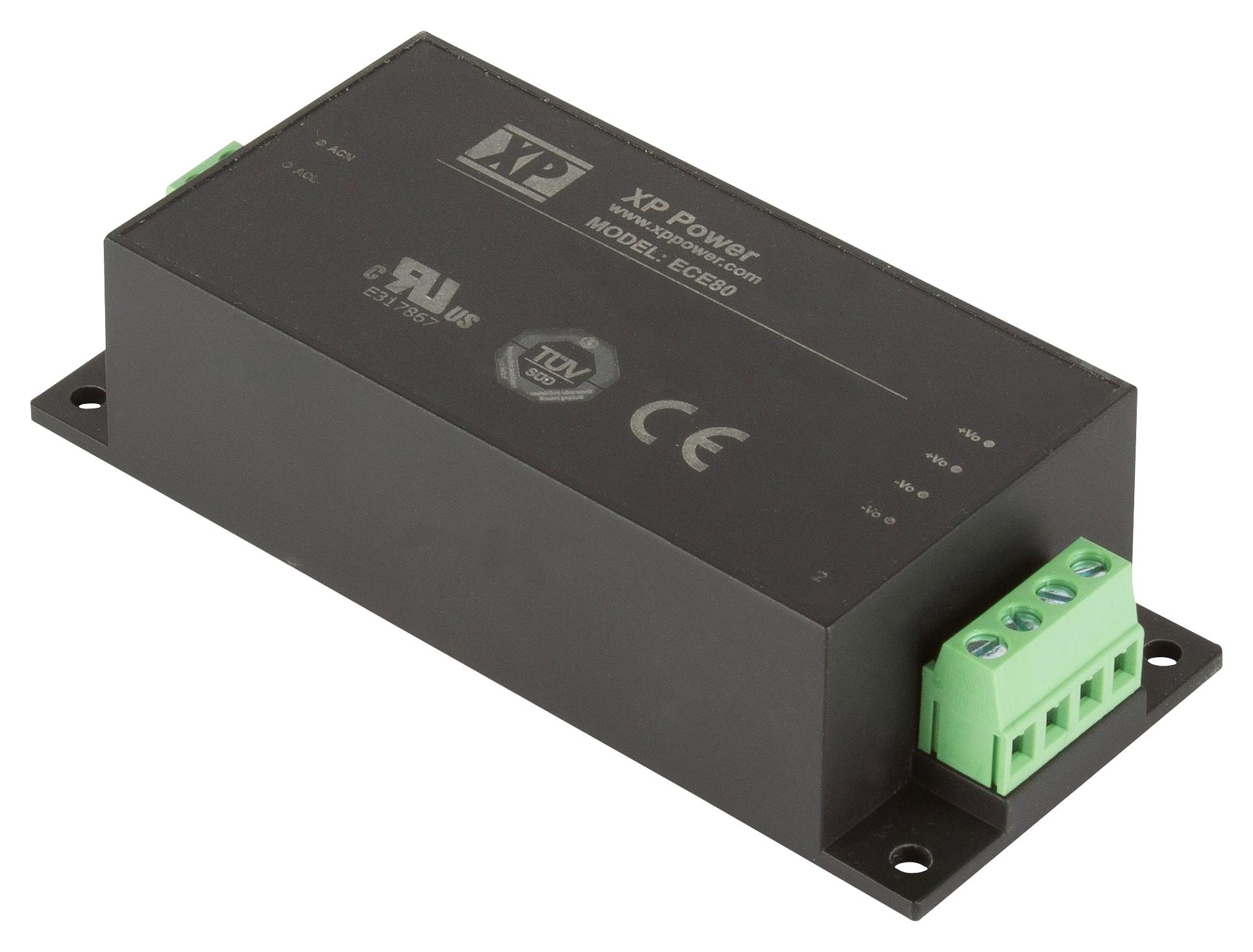

XP POWER ECE80US12S Industrial Power Module
The ECE80 series are compact, encapsulated AC-DC power modules offering up to 80 watts power output with high efficiency and low no-load power consumption. Suitable for PCB, chassis, and DIN rail mounting, these modules operate from 85 to 264 VAC and provide output voltages from 12V to 48V. They are designed for industrial applications, delivering peak loads up to 130% for 30 seconds, and operate from -40°C to 70°C, meeting safety and electromagnetic standards for reliable performance in harsh environments.
XP POWER ECE80US12S Industrial Power Module Specifications:
- Input Voltage Range: 85-264 VAC, derates at 90 VAC to 85 VAC
- Power Output: 80W at various voltages (12V to 48V)
- Output Current: 6.67A (12V), 5.33A (15V), 3.33A (24V), 2.22A (36V), 1.67A (48V)
- Efficiency: 86-88%
- Operating Temperature Range: -40°C to +70°C
- Peak Load Capability: up to 130% for 30 seconds
- Dimensions: Model ECE80US12: 3.60 x 1.80 x 1.10 inches; ECE80US12S: 4.45 x 1.87 x 1.12 inches
- Protection: Overvoltage, overload, short circuit, and high efficiency operation
- Standards: UL, CSA, EN61000-4, EN55032 (Class B), EN61000-4-2/3/4/5/6/8/11
Buy the XP Power Series Power Module: ECE80US12
Purchase the XP Power ECE80 series power module online today for reliable, high-efficiency power delivery in industrial applications. Designed for versatile mounting options including PCB, chassis, and DIN rail, this 80W unit features a wide input voltage range of 85-264 VAC, peak load capability up to 130% for 30 seconds, and operation from -40°C to 70°C. Its compact size and compliance with safety standards make it perfect for demanding environments. Order now to ensure your equipment has dependable power that meets all industry safety and electromagnetic compatibility requirements.
Get XP Power ECE80US12 today—built for industrial reliability with high efficiency and peak load capability up to 130%.
Frequently Asked Questions
Where can I buy XP POWER ECE80US12S?
You can click on the BUY or RFQ button to purchase ECE80US12S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECE80US12S?
You can download the ECE80US12S datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECE80US12S?
XP POWER
