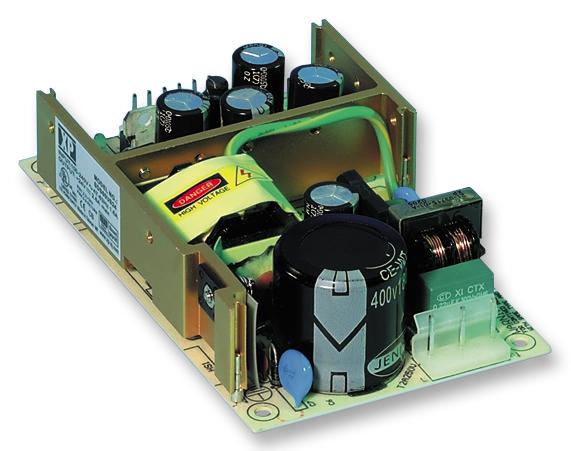

XP POWER SDS60UT05 Industrial Power Supply
The SDS60UT05 is a 60W industrial power supply designed in a standard 3" x 5" package, suitable for 1U applications. It offers single, dual, triple, and quad outputs with voltages from 3.3V to 48V, supporting input voltages from 90-264 VAC or 120-370 VDC. Features include 80% typical efficiency, convection cooling, 12ms hold-up time, EN55022 emissions compliance, and a MTBF of 190,000 hours. It provides overvoltage, overload, short circuit protections, and operates within 0 to +70 °C, with optional covers available.
XP POWER SDS60UT05 Industrial Power Supply Specifications:
- Input Voltage: 90-264 VAC / 120-370 VDC
- Efficiency: 80% typical at 230 VAC full load
- Input Frequency: 47-63 Hz
- Isolation: 3000 VAC input to output
- Output Power: 60 Watts max
- Output Voltage Range: 3.3V to 48V, multiple models
- Output Voltage Trim: +10% on V1 only
- Output Temperature Range: 0 °C to +70 °C, derating from 100%
- Cooling: Convection-cooled
- Start Up Delay: 2 seconds typical
- Hold Up Time: 12 ms min at 110 VAC, 100% load
- EMC/EMI: EN55022 level B conducted and radiated emissions
- Safety Approvals: EN60950-1, UL60950-1, CSA60950-1
- MTBF: 190,000 hours typical
- Protection: Overvoltage, overload, short circuit, and automatic recovery
- Operating Humidity: 5-95% RH, non-condensing
- Storage Temperature: -40°C to +85°C
Buy the Buy Industry Power Supply Part Number SDS60UT05 Online
Enhance your industrial setup by purchasing the SDS60UT05 power supply online. This high-performance unit offers multiple output options, efficient operation, and comprehensive protection features, making it ideal for automation and manufacturing environments. With a compact form factor, high reliability, and compliance with safety standards, it ensures your equipment operates smoothly and safely. Order now to get fast delivery and secure your power infrastructure with this versatile and dependable power supply solution tailored for demanding industrial applications.
Order your Industry Power Supply SDS60UT05 today and ensure reliable power delivery for your industrial projects with high efficiency and protective features.
Frequently Asked Questions
Where can I buy XP POWER SDS60UT05?
You can click on the BUY or RFQ button to purchase SDS60UT05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SDS60UT05?
You can download the SDS60UT05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of SDS60UT05?
XP POWER
