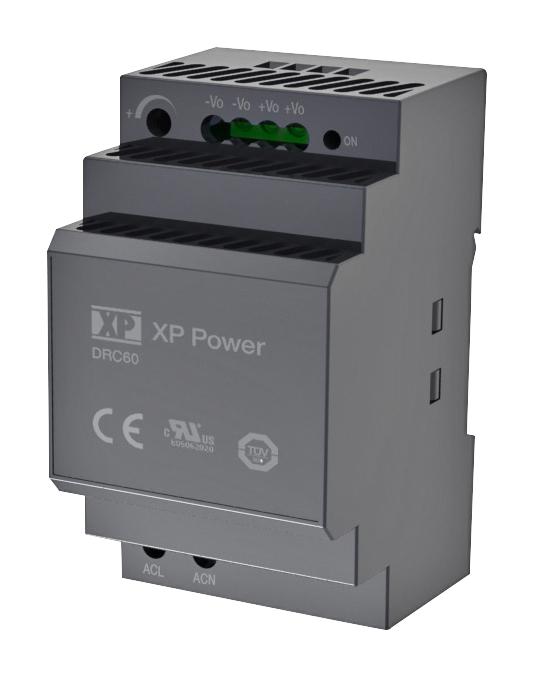

XP POWER DRC60US12 industrial power supply
The DRC60US12 power supply is a compact, convection-cooled device delivering 60 Watts of power. Designed for industrial and commercial applications, it supports universal input voltages from 85 to 264VAC and 120 to 370VDC. With an adjustable output from 5 to 48VDC and high efficiency up to 91%, it features UL/EN62368-1 approvals, Class II operation, and a robust design capable of operating between -30°C to +70°C. The power supply includes a DC 'ON' LED indicator, surge withstand capability of 300VAC for 5 seconds, and a full power output to +45°C, making it suitable for diverse automation and control environments.
XP POWER DRC60US12 industrial power supply Specifications:
- Power Output: 60 Watts
- Input Voltage: 85-264 VAC / 120-370 VDC
- Output Voltage Range: 5-48 VDC, Adjustable
- Efficiency: Up to 91%
- Operating Temperature: -30°C to +70°C (full power to +45°C)
- Dimensions: 3.6 x 2.04 x 2.28 inches (92.6 x 52.0 x 58.0 mm)
- Surge Withstand: 300 VAC for 5 seconds
- Certifications: UL/EN62368-1
- Protection: Class II operation, Short circuit & overload protection
- Indicators: DC 'ON' LED
- Mounting: Suitable for DIN rail, TS35 type
- Enclosure Material: UL94V-0 rated plastic
- Humidity: Up to 95% RH, non-condensing
- Vibration and Shock: Tested according to industrial standards
- Isolation: Input to output 4000 V
- Switching Frequency: Not specified
- Full power at ambient temperature to +45°C
- Warranty: 3 years
Buy the Buy XP Power DRC60US12 Power Supply Part Number DRC60US12 Online
Enhance your industrial automation setup with the XP Power DRC60US12 power supply. Designed for reliable performance, it supports universal input voltages, offers adjustable output voltages from 5 to 48VDC, and features high efficiency up to 91%. Its compact, low-profile design makes installation easy in confined spaces, while UL/EN62368-1 certifications ensure safety. Suitable for operating over a temperature range of -30°C to +70°C, it is perfect for demanding environments requiring durable power conversion solutions. Purchase online today for trusted quality and long-lasting performance.
Get XP Power DRC60US12 today—built for high efficiency, wide temperature range, and reliable industrial performance.
Frequently Asked Questions
Where can I buy XP POWER DRC60US12?
You can click on the BUY or RFQ button to purchase DRC60US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DRC60US12?
You can download the DRC60US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DRC60US12?
XP POWER
