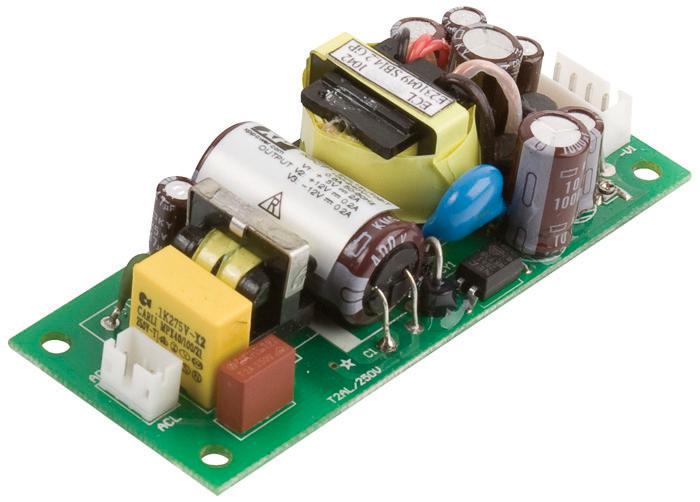

XP POWER ECL15US05T Power Supply Module
The ECL15 series is a highly reliable open frame power supply suitable for industrial applications, offering 15 W output power. It features single, dual, and triple output options with encapsulated, PCB, and chassis mount versions for versatile integration. The power supplies operate from 85-264 VAC with a frequency range of 47-63 Hz, providing excellent efficiency and low no-load power consumption below 0.3 W. Designed for rugged environments, they include protections against overvoltage, overload, and short circuits, meeting relevant EMC and safety standards, making them ideal for demanding industrial use.
XP POWER ECL15US05T Power Supply Module Specifications:
- Input Voltage: 85-264 VAC, 47-63 Hz, 120-370 VDC
- Output Power: 15 W
- Output Voltages: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Output Current: 0.52A to 6.50A depending on model
- Efficiency: Up to 82%
- Protection: Overvoltage, Overload, Short Circuit
- Isolation: 3000 VAC Input to Output
- Switching Frequency: 70 KHz typical
- Operating Temperature: -20°C to +70°C, derated above 50°C
- Dimensions: Varies with mount type, PCB mount approx. 0.07 to 0.15 inches thick
- Weight: 26 g (PCB mount), 35 g (chassis), 110 g (encapsulated)
- EMC & Safety: EN55032, EN61000-4, IEC60950-1, UL 62368-1 compliant
- MTBF: >400,000 hours at 25°C
Buy the XPPower ECL15 – Reliable Power Supply for Industrial Applications
Discover the XPPower ECL15 series power supply, engineered for industrial automation, control systems, and manufacturing processes. With multiple output voltages, high efficiency up to 82%, low no-load power below 0.3 W, and comprehensive protections, it ensures reliable operation in rugged environments. The compact design, available in PCB, chassis, and encapsulated mounts, simplifies installation in tight spaces. Choose the ECL15 series to enhance your system’s performance and longevity. Order online now for fast delivery and seamless integration into your project.
Order your XPPower ECL15 series power supply today and ensure your industrial projects run with dependable, efficient power solutions designed for demanding environments.
