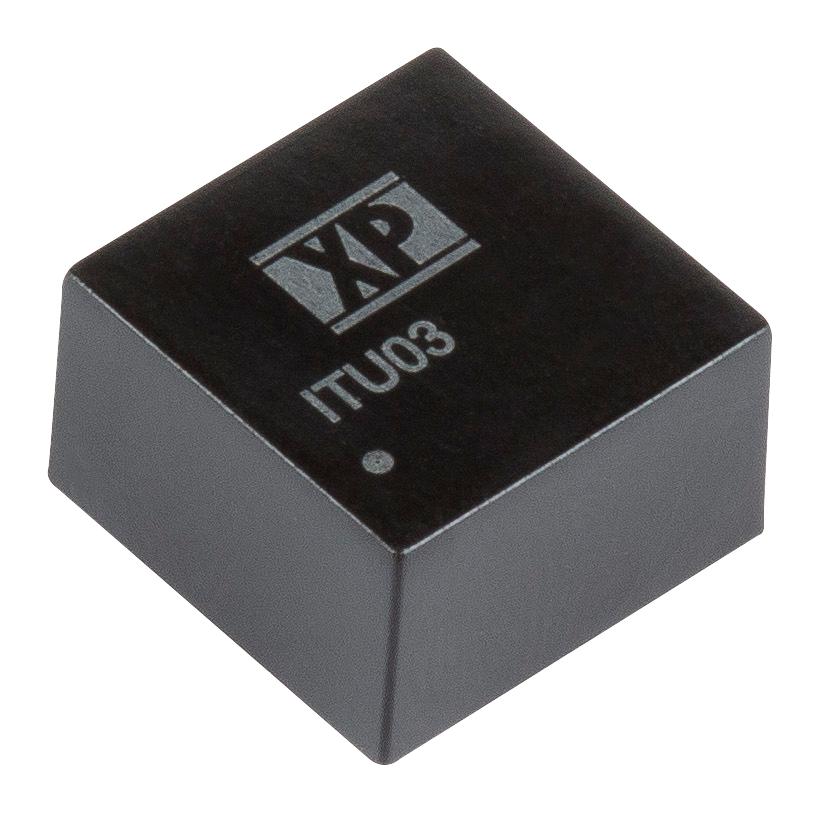

XP POWER ITU0348S05 DC-DC Converter
The XP Power ITU series is a compact 3W DC-DC converter offering regulated single and dual outputs from 3.3V to 30VDC, with a wide input range of 4.5V to 75V. It features a DIP8 package, 1.6kVDC input/output isolation, and efficiency up to 84%. Designed for industrial applications, this module provides remote on/off control, short-circuit protection, and operates reliably from -40°C to +80°C. It’s ideal for space-constrained projects requiring robust performance, high reliability, and versatile input/output options, ensuring efficient power conversion in demanding environments.
XP POWER ITU0348S05 DC-DC Converter Specifications:
- Power: 3 Watts
- Output Voltages: 3.3V to 30VDC, regulated
- Input Voltage Range: 4.5V to 75VDC with specified surges
- Isolation: 1.6kVDC input/output
- Efficiency: Up to 84%
- Operating Temperature: -40°C to +80°C, full power up to +70°C
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1 mm)
- Package: DIP8 encapsulated design
- Protection: Short-circuit protection and remote On/Off
- Certifications: EN55032 compliance
- MTBF: Over 820,000 hours (MIL-HDBK-217F, +25°C)
- Input Surge Voltage: Up to specified limits for 100ms
- Case Material: Non-conductive black plastic
- Safety Standards: CE, UKCA compliant
- Electromagnetic Compatibility: Conducted emissions compliant with EN55032
- Dimensions tolerance: ±0.02 inches (0.5 mm)
Buy the XP Power Series ITU DC-DC Converter: ITU0348S05
Experience the high-performance, compact design of the XP Power ITU0348S05 DC-DC converter, delivering 3W regulated power with wide input voltage options. Its robust encapsulated DIP8 package ensures durability in industrial environments, while features like remote on/off and short-circuit protection enhance safety and reliability. Perfect for space-constrained applications, it maintains efficiency up to 84% and covers a broad temperature range from -40°C to +80°C. Buy online now to secure a dependable power solution for your demanding engineering projects.
Order your XP Power Series ITU0348S05 today and give your projects the dependable quality they deserve with reliable power conversion.
Frequently Asked Questions
Where can I buy XP POWER ITU0348S05?
You can click on the BUY or RFQ button to purchase ITU0348S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0348S05?
You can download the ITU0348S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0348S05?
XP POWER
