XP POWER IMM0205S12 DC-DC Converter
The IMM02 series is a 2W DC-DC converter in an 8-pin SIP package, featuring worldwide medical safety approvals including UL, ANSI/AMMI ES60601-1, CSA C22.2 No. 60601-1, TUV EN60601-1, and CB IEC60601-1 standards. It supports single and dual outputs, operates within a temperature range of -20°C to 100°C at full load in a 60°C ambient environment, and provides 1500VAC isolation with a 1 x MOPP safety level. The converter also meets Level B conducted and radiated noise standards (EN55011), making it suitable for medical, industrial, and power management applications.
XP POWER IMM0205S12 DC-DC Converter Specifications:
- Power: 2 Watts
- Input Voltage Range: 3V3, 5V, 12V, 18V, 45-90V, 9-18V
- Output Voltage Range: 3.3V, 5V, 12V, 15V, 16V, 22V, 25V
- Output Current: 75mA to 303mA depending on model
- Isolation Voltage: 1500 VAC
- Operating Temperature: -20°C to +100°C
- Dimensions: 0.86 x 0.36 x 0.44 inches (21.85 x 9.2 x 11.1 mm)
- Efficiency: Up to 79%
- Maximum Capacitive Load: Varies per model, up to 2200 μF
- Protection: Short circuit, overload, auto recovery
- Isolation: Input to output 7500 VAC, Capacitance 27 pF
- MTBF: 1 million hours
- Certification: UL, IEC60601-1, CSA, TUV EN60601-1, CB

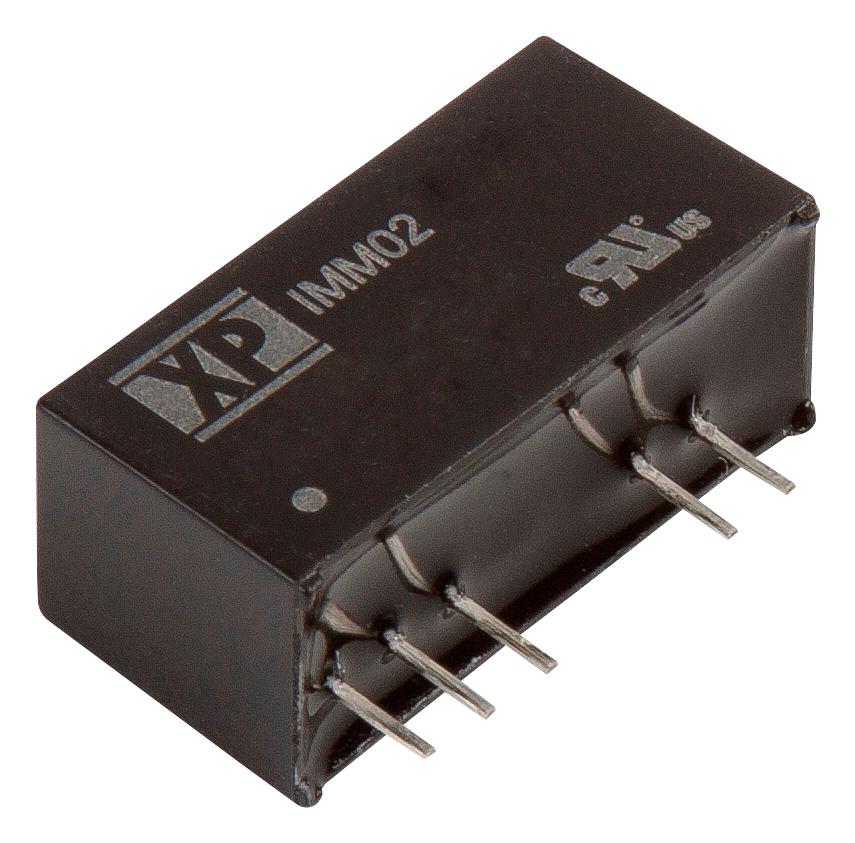

Buy the Buy XP Power DC-DC Converter Part Number IMM0205S12 Online
Enhance your power management system with this high-quality 2W DC-DC converter featuring worldwide safety approvals including UL and IEC60601-1. Its compact SIP8 package, wide temperature range, and 1500VAC isolation ensure safety and efficiency in medical, industrial, and electronic applications. Supports multiple input and output configurations, with protections like short circuit and overload auto recovery. Easy to integrate with trustworthy performance, this converter offers years of reliable service, making it an ideal choice for demanding power supply designs. Buy online today for fast delivery and technical support.
Buy XP Power IMM0205S12 now and experience unmatched reliability and performance in medical-grade power conversion.
Frequently Asked Questions
Where can I buy XP POWER IMM0205S12?
You can click on the BUY or RFQ button to purchase IMM0205S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0205S12?
You can download the IMM0205S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0205S12?
XP POWER
