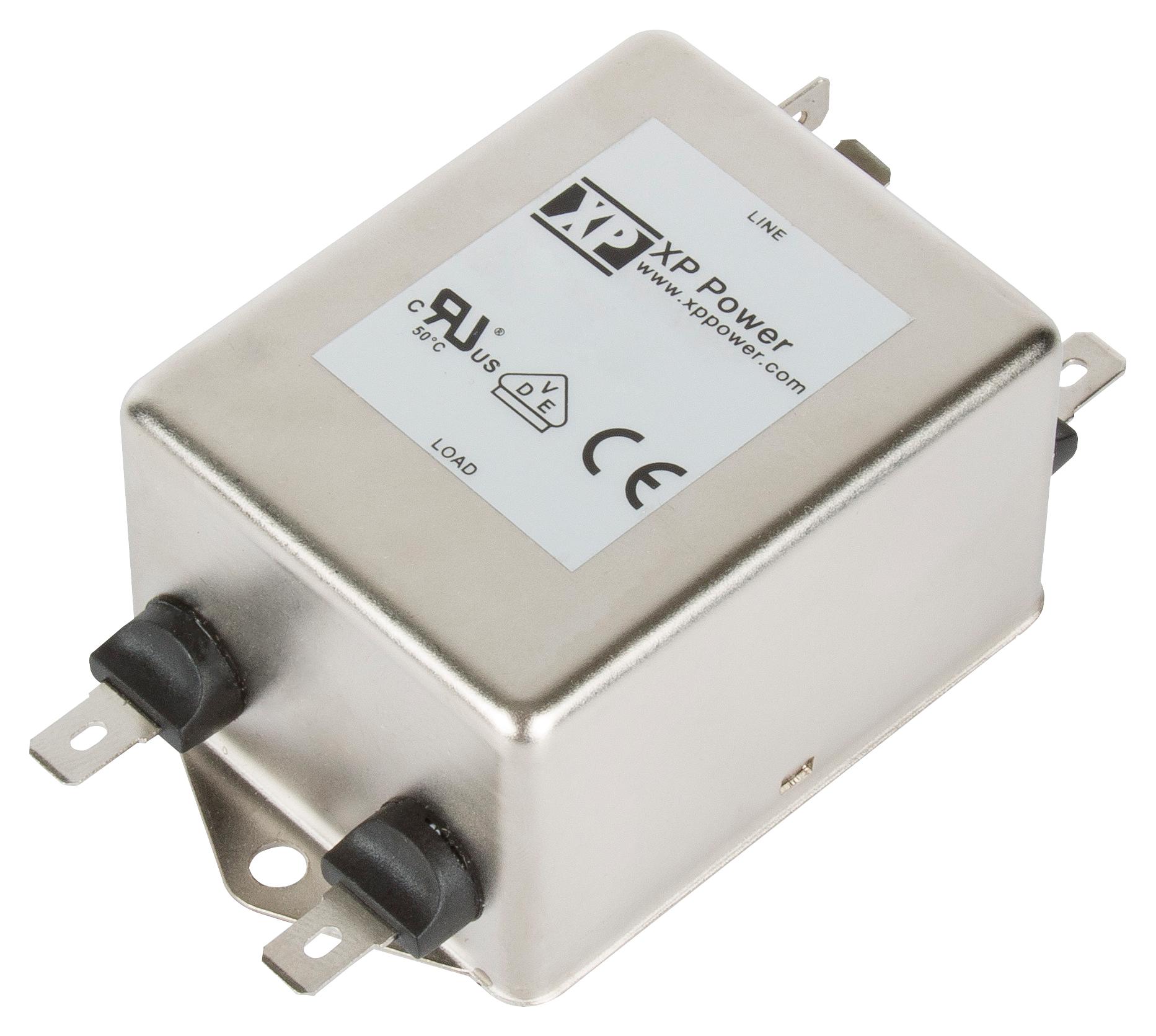

XP POWER FIHAA10C2F Chassis Mount EMI Filter
The FIHA high attenuation dual-stage filters are housed in a compact, chassis-mounting metal enclosure, designed for ITE applications. They feature dual-stage filtering, a shielded metal body, and are equipped with 6.3 x 0.8 mm Faston terminals for input and output connections. Each unit includes a bleed resistor to safely discharge filter capacitors when power is disconnected. Suitable for class I appliances, these filters comply with EN60939-2 and ANSI/UL1283 standards, operate from -40°C to +110°C with full power up to +50°C, and are available in ratings from 1A to 20A.
XP POWER FIHAA10C2F Chassis Mount EMI Filter Specifications:
- Rated Voltage: 250 VAG
- Input Frequency: 400 Hz
- Rated Current: 1A, 3A, 6A, 10A, 15A, 20A (model dependent)
- Earth Leakage Current: 3-6 mA (TTE versions), 2-5 W (medical models)
- MTBF: 22,000 hours at 40°C (MIL-HBDK 217F, 250 VAG)
- Flammability Rating: UL V-2
- Temperature Range: -40°C to +110°C, full power up to +50°C
- Protection Class: Suitable for class I appliances
- Dielectric Strength: 1500 VAG
- Terminals: Faston 6.3 x 0.8 mm straight
- Leakage Current: 0.3 mA at 15VAG/250VAG at 10kHz
- Capacitance: 0.3pF - 0.3µF (model dependent)
- Inductance: 2x (1.0 - 7.4 mH depending on model)
Buy the XP Power FIHAA10C2F – Reliable EMI Filter for Industrial Applications
Purchase the XP Power FIHAA10C2F chassis mount EMI filter online today and ensure your electronic equipment meets the highest standards of EMI suppression. Designed with dual-stage filtering, shielded metal body, and faston terminals, this filter provides reliable performance for industrial and IT applications. With ratings from 1A to 20A and wide operating temperature range, it guarantees excellent attenuation of electromagnetic interference, safe discharge via bleed resistor, and compliance with safety standards. Get yours now for dependable electrical noise filtering.
Order your XP Power FIHAA10C2F chassis mount filter today and enhance your equipment’s EMI suppression with our dependable, compact design solution.
Frequently Asked Questions
Where can I buy XP POWER FIHAA10C2F?
You can click on the BUY or RFQ button to purchase FIHAA10C2F from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FIHAA10C2F?
You can download the FIHAA10C2F datasheet or visit the XP POWER website for support.
Who is the manufacturer of FIHAA10C2F?
XP POWER
