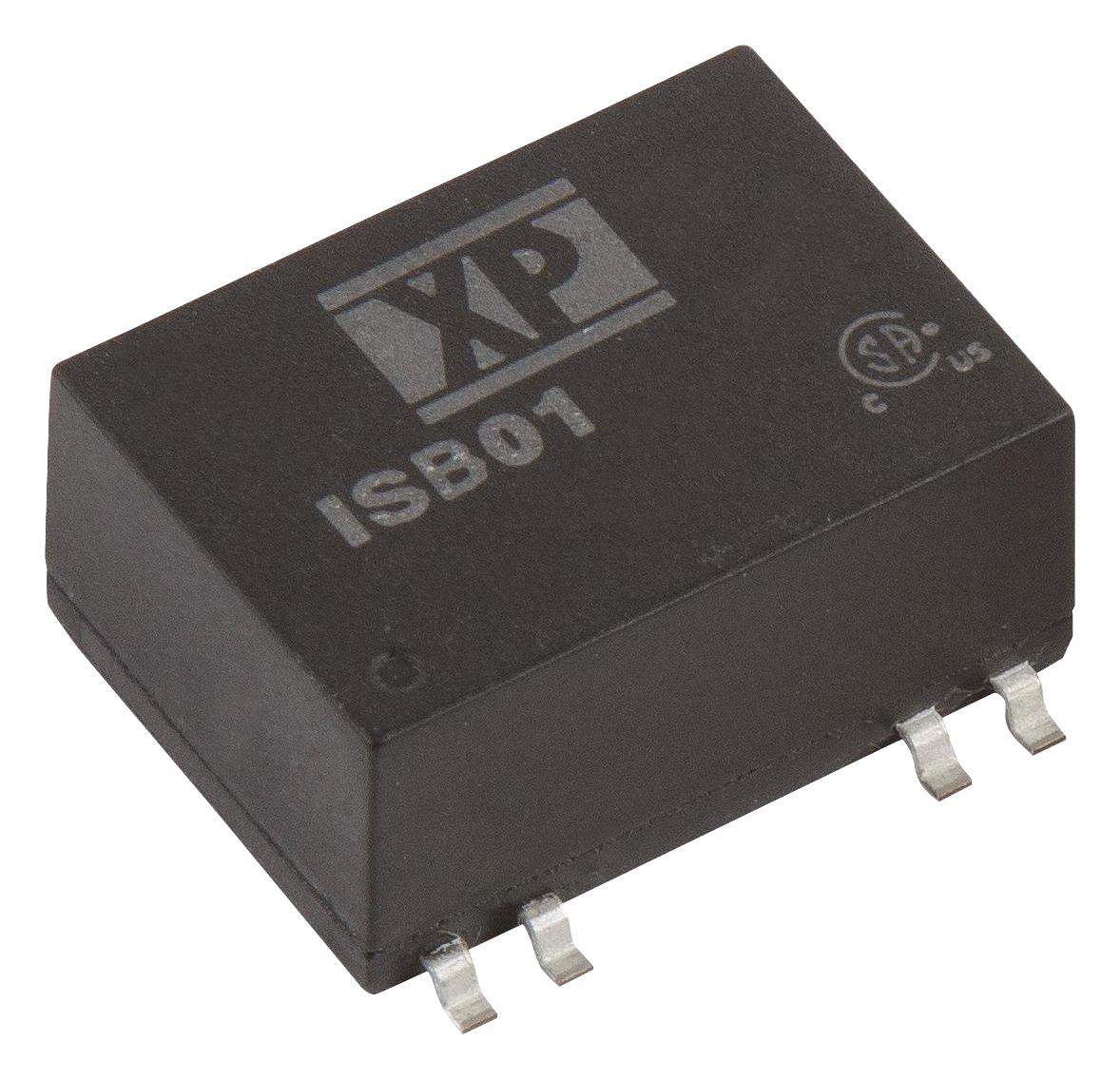

XP POWER ISB0112D15 DC-DC Converter
The ISBO1 Series DC-DC Converter offers a compact 1W power solution with regulated single and dual outputs, wide input voltage range, and 1500 VDC isolation. Designed for industrial and electronic applications, it features a small SMD package, remote on/off, high efficiency up to 82%, and operates within -40°C to +95°C. The converter supports various voltage inputs from 4.5V to 75V and provides excellent regulation, fast transient response, and low ripple noise, making it ideal for space-constrained embedded systems and industrial control projects.
XP POWER ISB0112D15 DC-DC Converter Specifications:
- Input Voltage Range: 4.5-75V
- Output Voltage: 5V, 12V, 15V, 18V, 24V, 30V (various models)
- Output Current: Up to 200mA depending on model
- Isolation Voltage: 1500 VDC
- Efficiency: Up to 82%
- Ripple & Noise: 75 mVp-p
- Operating Temperature: -40°C to +95°C
- Switching Frequency: 220 kHz
- Case Material: Non conductive black plastic, UL 94V-0 rated
- Dimensions: 0.74 x 0.68 x 0.34 inches (18.9 x 17.2 x 8.7 mm)
- Remote On/Off: Yes, via external control
- Protection: Continuous short circuit with auto recovery
- Certification: UL, cUL, CE, UKCA
- Weight: Approx. 4.5 grams
- Moisture Sensitivity Level: Level 2
Buy the XP Power Series ISBO1 DC-DC Converter: ISB0112D15
Purchase the XP Power ISBO1 Series DC-DC Converter online today to secure a reliable, high-performance power module with 1500 VDC isolation, efficiency up to 82%, and a compact SMD design. Perfect for industrial automation, embedded systems, and space-constrained environments, this converter supports wide input voltage ranges from 4.5V to 75V. With remote on/off control, excellent transient response, and safety certifications including UL and CE, it ensures consistent, safe operation in demanding applications. Order now for fast delivery and technical support.
Buy XP Power ISBO1 Series DC-DC Converter ISB0112D15 now and experience unmatched reliability and high efficiency in compact power solutions.
Frequently Asked Questions
Where can I buy XP POWER ISB0112D15?
You can click on the BUY or RFQ button to purchase ISB0112D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISB0112D15?
You can download the ISB0112D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISB0112D15?
XP POWER
