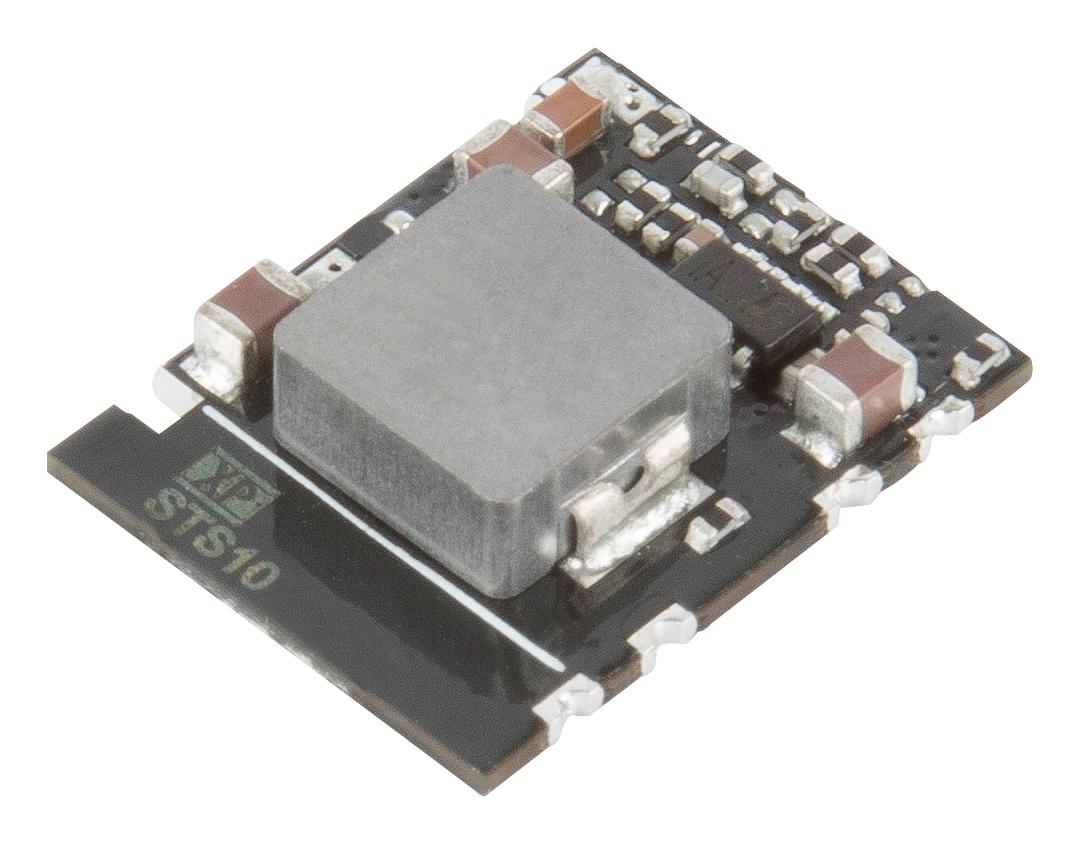

XP POWER STS1005S1V5 DC-DC Buck Regulator
The STS10 series consists of compact, low-cost DC-DC buck regulators utilizing surface-mount technology and advanced automation. They provide regulated single outputs ranging from 1.2V to 15V DC with a wide input voltage range. Features include adjustable output voltage with ±10% trimming, remote On/Off control, high efficiency up to 96%, and full load operation up to +65°C. The series offers short-circuit protection, no heatsink requirement, and complies with Class B emissions with external components. The packages are in SMD-10 form factor and are non-isolated.
XP POWER STS1005S1V5 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 3.0-36.0V
- Output Voltage: 1.2V to 15V DC with trim +10%
- Output Current: 1.0A
- Efficiency: up to 96%
- Operating Temperature: -40°C to +105°C, full load up to +65°C
- Package: SMD-10
- Non-Isolated
- Remote On/Off
- Short-Circuit Protection
- No Heatsink Required
- Efficiency at 5V input: 90.5-92.5%
- Efficiency at 24V input: 87-96%
- Supply Voltage Tolerance: ±10% on output voltage
- Compliance: Class B Conducted & Radiated Emissions with external components
- Wave Soldering Compatibility: 260°C max, 1.5mm from case, 10s max
Buy the XP Power Series Buck Regulator: STS10-15V Power Module
Order the XP Power series buck regulator online today and experience reliable power conversion with efficiencies up to 96%. Its compact SMD packaging, adjustable output with trim, remote On/Off, and short-circuit protection make it ideal for industrial, automotive, and consumer applications. Designed to operate from -40°C to +105°C with full load up to +65°C, this regulator ensures robust performance with no heatsink needed. Trust XP Power’s quality for your critical power management needs, all available for quick online purchase and fast delivery.
Get XP Power STS10-15V series buck regulator today—built for precision and long-lasting durability in power management applications.
Frequently Asked Questions
Where can I buy XP POWER STS1005S1V5?
You can click on the BUY or RFQ button to purchase STS1005S1V5 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STS1005S1V5?
You can download the STS1005S1V5 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STS1005S1V5?
XP POWER
